- Tube Furnace Flange with Gas Inlet & Outlet Ports
Tube Furnace Flange with Gas Inlet & Outlet Ports
https://www.s4r.fr/shop/tube-furnace-flange-with-gas-inlet-outlet-ports-292 https://www.s4r.fr/web/image/product.template/292/image_1920?unique=4c12cc4
Request Pricing Access
Already have an approved account? Sign in

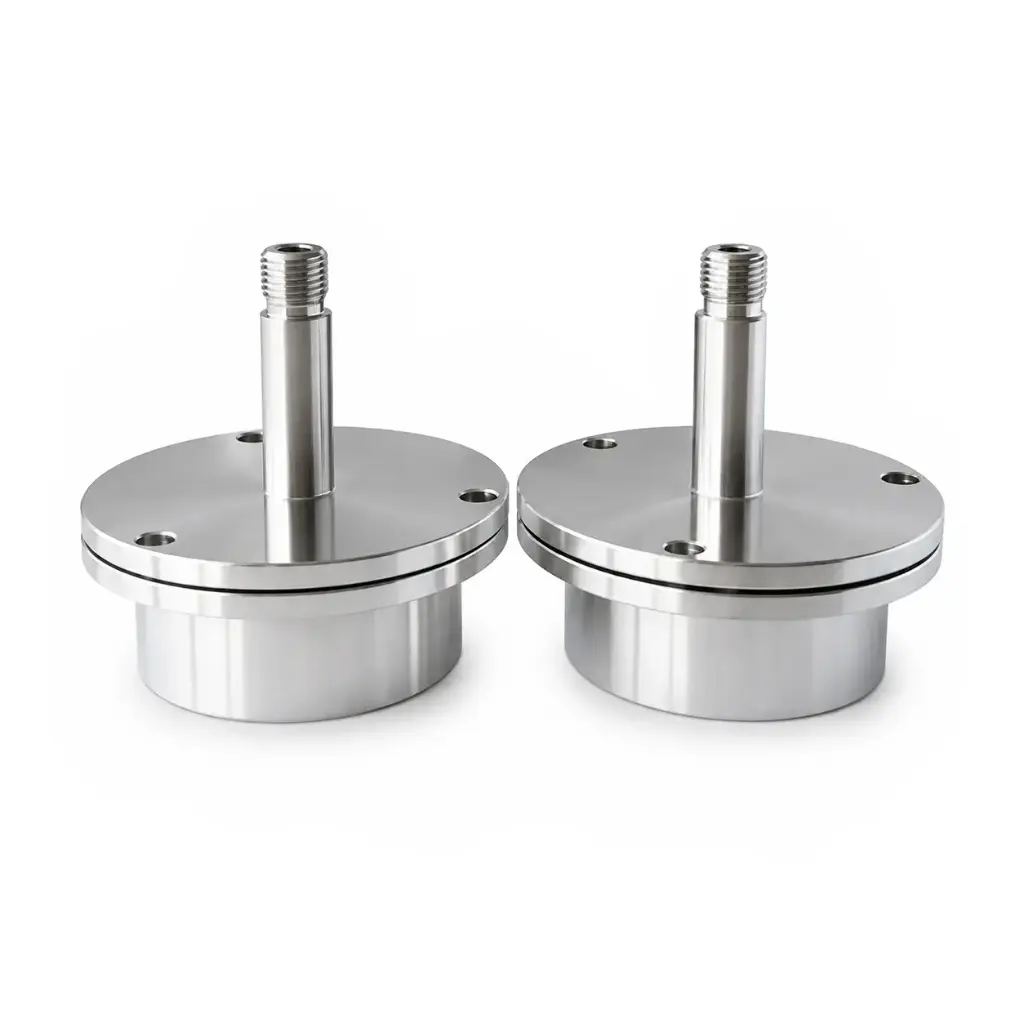

The S4R Tube Furnace Flange Set provides a removable tube-end connection system for laboratory furnaces operated with controlled gas flow. Two matching 304 stainless steel flange assemblies are installed at opposite ends of the furnace tube, providing dedicated inlet and outlet interfaces for the external gas line. Sealing rings and fastening hardware are supplied with the assembly.
Key Features
✓ 304 stainless steel flange construction
✓ Matched two-end flange set
✓ Dedicated gas inlet and outlet connection ports
✓ Removable mechanical clamping design
✓ Sealing rings and fastening hardware included
✓ Standard and custom tube sizes available
Typical Applications
• Laboratory tube furnace assemblies
• Controlled-atmosphere thermal processing
• Inert-gas purging
• Continuous process-gas flow
• Quartz and alumina furnace-tube systems
• Materials research and thermal-treatment setups
Technical Specifications
| Flange Material | 304 stainless steel |
| Product Type | Tube furnace gas inlet / outlet flange set |
| Supply Configuration | Two matching tube-end flange assemblies |
| Sealing Components | Sealing rings included |
| Fastening Hardware | Included |
| Standard Compatible Tube OD | 25 / 30 / 40 / 50 / 60 / 80 / 100 / 120 mm |
| Compatible Tube Materials | Quartz and alumina furnace tubes |
| External Connection | Threaded gas connection port |
| Thread Specification | Configuration-dependent — confirm when ordering |
| Custom Configuration | Available on request |
Standard Compatible Tube Sizes
| Ø25 mm | Standard |
| Ø30 mm | Standard |
| Ø40 mm | Standard |
| Ø50 mm | Standard |
| Ø60 mm | Standard |
| Ø80 mm | Standard |
| Ø100 mm | Standard |
| Ø120 mm | Standard |
Gas-Flow Configuration
| Inlet Flange | Threaded interface for incoming process gas |
| Furnace Tube | Internal flow path through the furnace processing zone |
| Outlet Flange | Threaded interface for outgoing process gas |
Package Contents
• Two 304 stainless steel tube-end flange assemblies
• Matching sealing rings
• Required fastening screws and assembly hardware
Technical Notes
• Select the flange according to the actual outside diameter of the furnace tube.
• Sealing rings and tube contact surfaces should be clean and correctly positioned before assembly.
• Tighten the fastening hardware progressively and evenly to limit localized mechanical loading on the furnace tube.
• The external connection is threaded; the exact thread standard and nominal size depend on the selected configuration and should be confirmed when ordering.
• No specific maximum pressure, vacuum level or operating-temperature rating is stated for this assembly unless defined for a particular configuration.
Supply
Complete Matched Flange Set
Two tube-end flanges supplied with matching seals and fastening hardware
Two tube-end flanges supplied with matching seals and fastening hardware
Selection & Custom Configuration
Standard configurations are available for compatible furnace tubes
with outside diameters of 25, 30, 40, 50, 60, 80, 100 and 120 mm.
For non-standard tube diameters or specific gas-line connection
requirements, please provide the tube outside diameter, tube material,
required connection thread or adapter configuration and quantity.
The S4R Tube Furnace Flange Set provides a removable tube-end connection system for laboratory furnaces operated with controlled gas flow. Two matching 304 stainless steel flange assemblies are installed at opposite ends of the furnace tube, providing dedicated inlet and outlet interfaces for the external gas line. Sealing rings and fastening hardware are supplied with the assembly.
Key Features
✓ 304 stainless steel flange construction
✓ Matched two-end flange set
✓ Dedicated gas inlet and outlet connection ports
✓ Removable mechanical clamping design
✓ Sealing rings and fastening hardware included
✓ Standard and custom tube sizes available
Typical Applications
• Laboratory tube furnace assemblies
• Controlled-atmosphere thermal processing
• Inert-gas purging
• Continuous process-gas flow
• Quartz and alumina furnace-tube systems
• Materials research and thermal-treatment setups
Technical Specifications
| Flange Material | 304 stainless steel |
| Product Type | Tube furnace gas inlet / outlet flange set |
| Supply Configuration | Two matching tube-end flange assemblies |
| Sealing Components | Sealing rings included |
| Fastening Hardware | Included |
| Standard Compatible Tube OD | 25 / 30 / 40 / 50 / 60 / 80 / 100 / 120 mm |
| Compatible Tube Materials | Quartz and alumina furnace tubes |
| External Connection | Threaded gas connection port |
| Thread Specification | Configuration-dependent — confirm when ordering |
| Custom Configuration | Available on request |
Standard Compatible Tube Sizes
| Ø25 mm | Standard |
| Ø30 mm | Standard |
| Ø40 mm | Standard |
| Ø50 mm | Standard |
| Ø60 mm | Standard |
| Ø80 mm | Standard |
| Ø100 mm | Standard |
| Ø120 mm | Standard |
Gas-Flow Configuration
| Inlet Flange | Threaded interface for incoming process gas |
| Furnace Tube | Internal flow path through the furnace processing zone |
| Outlet Flange | Threaded interface for outgoing process gas |
Package Contents
• Two 304 stainless steel tube-end flange assemblies
• Matching sealing rings
• Required fastening screws and assembly hardware
Technical Notes
• Select the flange according to the actual outside diameter of the furnace tube.
• Sealing rings and tube contact surfaces should be clean and correctly positioned before assembly.
• Tighten the fastening hardware progressively and evenly to limit localized mechanical loading on the furnace tube.
• The external connection is threaded; the exact thread standard and nominal size depend on the selected configuration and should be confirmed when ordering.
• No specific maximum pressure, vacuum level or operating-temperature rating is stated for this assembly unless defined for a particular configuration.
Supply
Complete Matched Flange Set
Two tube-end flanges supplied with matching seals and fastening hardware
Two tube-end flanges supplied with matching seals and fastening hardware
Selection & Custom Configuration
Standard configurations are available for compatible furnace tubes
with outside diameters of 25, 30, 40, 50, 60, 80, 100 and 120 mm.
For non-standard tube diameters or specific gas-line connection
requirements, please provide the tube outside diameter, tube material,
required connection thread or adapter configuration and quantity.
