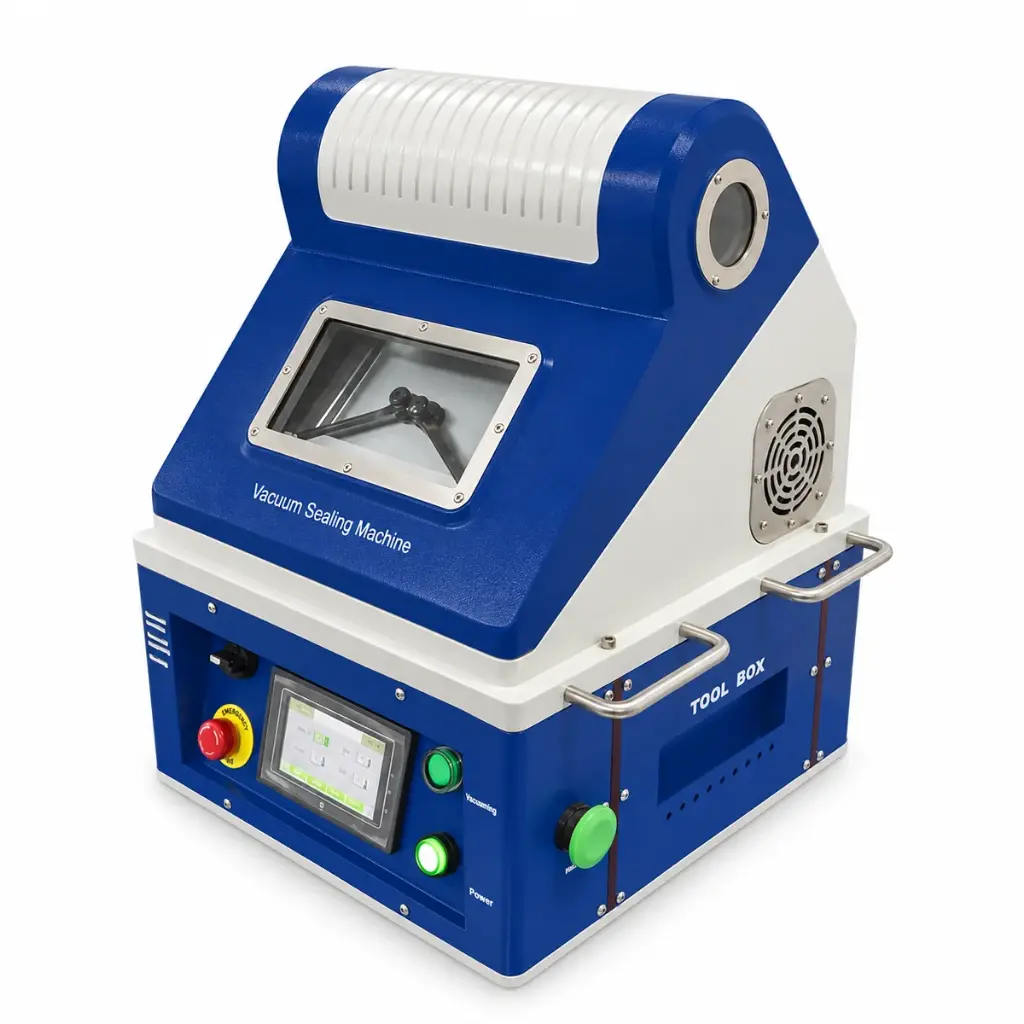

S4R Pouch Cell Vacuum Heat Sealer – 4-in-1, 220 V
| Power supply — 4-in-1 Pouch Cell Sealer: 220 V AC — 50/60 Hz |
Pouch cell vacuum heat sealer
Prepare laboratory pouch cells with four packaging functions in one benchtop machine. The chamber accepts cells up to 160 × 180 × 12 mm, with a standard 4 mm seal width and a sealing length up to 190 mm.
Set the sealing temperature, dwell time and vacuum-hold duration from the touchscreen. The machine can be installed in a dry room or a suitably sized argon or nitrogen glovebox, with external gas and vacuum services.
Maximum settings are equipment limits. Validate the sealing process for the selected laminate, tab sealant and cell chemistry.
Product highlights
Four packaging functions
Use top/side sealing without vacuum, inert-gas purging, a vacuum hold or sealing under vacuum according to the assembly stage.
Controlled heat sealing
Adjust temperature and heating time to suit the pouch laminate and seal geometry.
Touchscreen settings
A 4.5-inch touchscreen provides access to sealing modes, vacuum and process timing.
Glovebox integration
Operate with high-purity argon or nitrogen when installed inside a compatible glovebox.
Top, side and vacuum sealing
The upper and lower dies close the selected edge of the pouch. A sealing blade with a rubber buffer provides the documented soft-sealing configuration. The standard seal is 4 mm wide; alternative widths require a separately specified die.
Top and side seals can be made without applying vacuum. Vacuum sealing requires a compatible external pump. A vacuum hold and inert-gas purge can be incorporated when required by the validated cell-assembly procedure.
Gas and vacuum connections
Rear connections provide access to inert purge gas, pneumatic actuation gas and vacuum. The pneumatic chamber lid and sealing mechanism require a regulated gas supply; the recommended supply pressure is approximately 4.1 bar (60 psi).
For glovebox use, supply high-purity argon or nitrogen rather than compressed room air. A two-stage regulator is required when using a gas cylinder. Check the glovebox opening, feedthrough positions and clearance for the raised lid before installation.
Technical specifications
| Parameter | Specification |
|---|---|
| Equipment type | Benchtop multifunction vacuum heat sealer for pouch-cell research |
| Functions | Top/side sealing; inert-gas purging; vacuum holding; vacuum sealing |
| Maximum pouch-cell dimensions | 160 mm length × 180 mm width × 12 mm thickness |
| Maximum sealing length | 190 mm |
| Standard sealing width | 4 mm; other widths specified separately |
| Sealing die | Sealing blade with rubber buffer (soft sealing) |
| Die alignment specification | ≤ 0.03 mm overlapping precision of the upper and lower dies |
| Temperature setting range | 50–260 °C |
| Temperature control specification | ±2 °C (controller specification) |
| Heated sealing time | 0–99 s, adjustable |
| Vacuum-hold duration | 0–900 s, adjustable |
| Vacuum setting range | −95 to 0 kPa gauge; achieved conditions depend on the external pump and installation |
| Control interface | 4.5-inch touchscreen |
| Electrical supply | 220 V AC configuration; specified input range 208–240 V AC, single-phase, 50/60 Hz |
| Rated electrical power | 700 W |
| Recommended pneumatic supply | Approximately 4.1 bar (60 psi); regulated supply required |
| Maximum pneumatic supply | 0.6 MPa; do not exceed |
| Glovebox operating gas | High-purity argon or nitrogen |
| External connections | Inert-gas, pneumatic-gas and vacuum ports |
| Nominal dimensions | 455 × 390 × 600 mm (L × W × H); allow for the raised lid |
| Net mass | Approximately 55 kg |
Included equipment and external services
Included with the machine
- 220 V sealing machine
- Four functions, touchscreen control and standard 4 mm sealing dies.
- Vacuum connection
- Connection tubing and a KF25 barbed adapter for a compatible external pump.
- Glovebox feedthrough
- KF40 feedthrough for installation in a compatible glovebox.
Required separately
- Vacuum pump
- Required for vacuum holding and vacuum sealing; not included.
- Regulated pneumatic supply
- Compressed air outside a glovebox, or high-purity argon/nitrogen inside. Compressor and gas supply are not included.
- Inert purge gas
- Argon or nitrogen supply for purging. Cylinder and two-stage regulator are not included.
Optional configuration: alternative sealing widths can be specified separately. Confirm the die dimensions and pouch laminate before ordering.
Operation and maintenance
Operate with one trained user. Keep hands clear of the powered lid and hot sealing dies. Allow the dies to cool before cleaning; follow the machine manual for cleaning, inspection and pneumatic maintenance.
Pouch cell vacuum heat sealer
Prepare laboratory pouch cells with four packaging functions in one benchtop machine. The chamber accepts cells up to 160 × 180 × 12 mm, with a standard 4 mm seal width and a sealing length up to 190 mm.
Set the sealing temperature, dwell time and vacuum-hold duration from the touchscreen. The machine can be installed in a dry room or a suitably sized argon or nitrogen glovebox, with external gas and vacuum services.
Maximum settings are equipment limits. Validate the sealing process for the selected laminate, tab sealant and cell chemistry.
Product highlights
Four packaging functions
Use top/side sealing without vacuum, inert-gas purging, a vacuum hold or sealing under vacuum according to the assembly stage.
Controlled heat sealing
Adjust temperature and heating time to suit the pouch laminate and seal geometry.
Touchscreen settings
A 4.5-inch touchscreen provides access to sealing modes, vacuum and process timing.
Glovebox integration
Operate with high-purity argon or nitrogen when installed inside a compatible glovebox.
Top, side and vacuum sealing
The upper and lower dies close the selected edge of the pouch. A sealing blade with a rubber buffer provides the documented soft-sealing configuration. The standard seal is 4 mm wide; alternative widths require a separately specified die.
Top and side seals can be made without applying vacuum. Vacuum sealing requires a compatible external pump. A vacuum hold and inert-gas purge can be incorporated when required by the validated cell-assembly procedure.
Gas and vacuum connections
Rear connections provide access to inert purge gas, pneumatic actuation gas and vacuum. The pneumatic chamber lid and sealing mechanism require a regulated gas supply; the recommended supply pressure is approximately 4.1 bar (60 psi).
For glovebox use, supply high-purity argon or nitrogen rather than compressed room air. A two-stage regulator is required when using a gas cylinder. Check the glovebox opening, feedthrough positions and clearance for the raised lid before installation.
Technical specifications
| Parameter | Specification |
|---|---|
| Equipment type | Benchtop multifunction vacuum heat sealer for pouch-cell research |
| Functions | Top/side sealing; inert-gas purging; vacuum holding; vacuum sealing |
| Maximum pouch-cell dimensions | 160 mm length × 180 mm width × 12 mm thickness |
| Maximum sealing length | 190 mm |
| Standard sealing width | 4 mm; other widths specified separately |
| Sealing die | Sealing blade with rubber buffer (soft sealing) |
| Die alignment specification | ≤ 0.03 mm overlapping precision of the upper and lower dies |
| Temperature setting range | 50–260 °C |
| Temperature control specification | ±2 °C (controller specification) |
| Heated sealing time | 0–99 s, adjustable |
| Vacuum-hold duration | 0–900 s, adjustable |
| Vacuum setting range | −95 to 0 kPa gauge; achieved conditions depend on the external pump and installation |
| Control interface | 4.5-inch touchscreen |
| Electrical supply | 220 V AC configuration; specified input range 208–240 V AC, single-phase, 50/60 Hz |
| Rated electrical power | 700 W |
| Recommended pneumatic supply | Approximately 4.1 bar (60 psi); regulated supply required |
| Maximum pneumatic supply | 0.6 MPa; do not exceed |
| Glovebox operating gas | High-purity argon or nitrogen |
| External connections | Inert-gas, pneumatic-gas and vacuum ports |
| Nominal dimensions | 455 × 390 × 600 mm (L × W × H); allow for the raised lid |
| Net mass | Approximately 55 kg |
Included equipment and external services
Included with the machine
- 220 V sealing machine
- Four functions, touchscreen control and standard 4 mm sealing dies.
- Vacuum connection
- Connection tubing and a KF25 barbed adapter for a compatible external pump.
- Glovebox feedthrough
- KF40 feedthrough for installation in a compatible glovebox.
Required separately
- Vacuum pump
- Required for vacuum holding and vacuum sealing; not included.
- Regulated pneumatic supply
- Compressed air outside a glovebox, or high-purity argon/nitrogen inside. Compressor and gas supply are not included.
- Inert purge gas
- Argon or nitrogen supply for purging. Cylinder and two-stage regulator are not included.
Optional configuration: alternative sealing widths can be specified separately. Confirm the die dimensions and pouch laminate before ordering.
Operation and maintenance
Operate with one trained user. Keep hands clear of the powered lid and hot sealing dies. Allow the dies to cool before cleaning; follow the machine manual for cleaning, inspection and pneumatic maintenance.
