S4R Platinum Crucibles with Lids – 10–100 mL, Pt ≥99.95%

Platinum laboratory crucibles supplied individually with a matching lid, in 10, 20, 30, 50 and 100 mL capacities. Standard purity is ≥99.95% Pt. Select the capacity for your sample and furnace; nominal masses include the lid. Other sizes and 99.99% purity are available on request, subject to technical confirmation.

Pricing available to approved customers

Add this product to a quote request, or sign in to view your pricing.

Capacity — Platinum Crucibles

This combination does not exist.

Qty

No account required. Add the products you need, then send your request to our technical sales team.

Request Pricing Access

S4R · Platinum labware

Platinum crucibles with matching lids

10, 20, 30, 50 and 100 mL · Pt ≥99.95%

Round, tapered platinum crucibles for laboratory heating and sample preparation. Each capacity is supplied with a matching platinum lid; select the vessel size to suit your sample and furnace clearance.

Platinum purity

≥99.95%

Standard supply

Crucible + lid

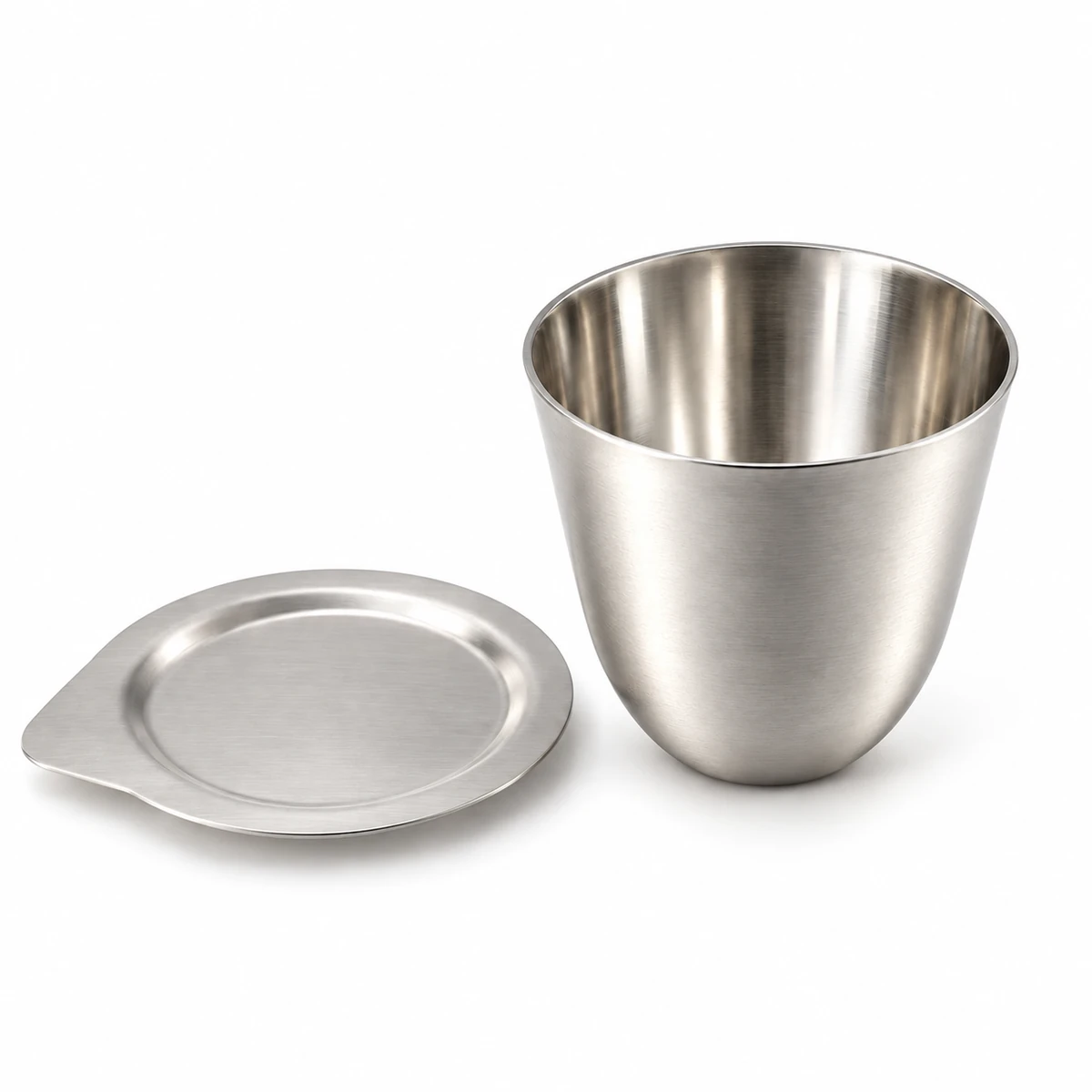

Platinum crucible and removable lid with lifting tab; representative 10 mL configuration

Choose your capacity

One crucible and one lid per selected configuration.

Capacity	Mass including lid
10 mL	12 g
20 mL	20 g
30 mL	30 g
50 mL	50 g
100 mL	100 g

Capacities and masses are nominal. The photograph represents the 10 mL model. Confirm dimensions, tolerances and usable fill level for your application; the stated mass excludes packaging.

Technical specifications

Parameter	Specification
Material	Platinum (Pt), standard purity ≥99.95%
Geometry	Round, tapered body with rounded lower profile
Lid	Removable platinum lid with lifting tab; not a pressure-tight closure
Temperature limit	1200 °C maximum, subject to chemical compatibility and heating conditions
Heating	Controlled furnace heating; do not heat directly in a flame
10 mL reference dimensions	Height 27 mm · mouth Ø25 mm · base Ø16 mm

The 10 mL dimensions are reference values; internal/external diameter conventions and manufacturing tolerances are not specified. Request a confirmed drawing when fit is critical.

Handling and compatibility

Protect the platinum surface

Use clean, suitable tongs and light pressure. Platinum is soft: avoid deforming the rim, scratching the surface or contacting other metals during heating.

Check the sample before heating

Do not use aqua regia, molten alkalis or peroxide mixtures. Avoid materials that can alloy with platinum. Unknown compositions and samples containing sulfur, phosphorus, arsenic or reducible metal compounds require a compatibility review.

Other capacities and purity grades

For a 5 mL configuration, capacities above 100 mL, specific dimensions or 99.99% Pt, contact S4R with your application and required quantity. Custom specifications and availability are confirmed with the quotation.

Discuss your requirements
