- Manual Electrode Disc Punch Pliers — 6-Die Set
Manual Electrode Disc Punch Pliers — 6-Die Set
https://www.s4r.fr/shop/s4r-lbc-slt0011a-manual-electrode-disc-punch-pliers-6-die-set-266 https://www.s4r.fr/web/image/product.template/266/image_1920?unique=63d1399Compact manual punch pliers with six interchangeable round dies for preparing electrode discs, separator films, membranes and other thin laboratory sheet materials.
Request Pricing Access
Already have an approved account? Sign in

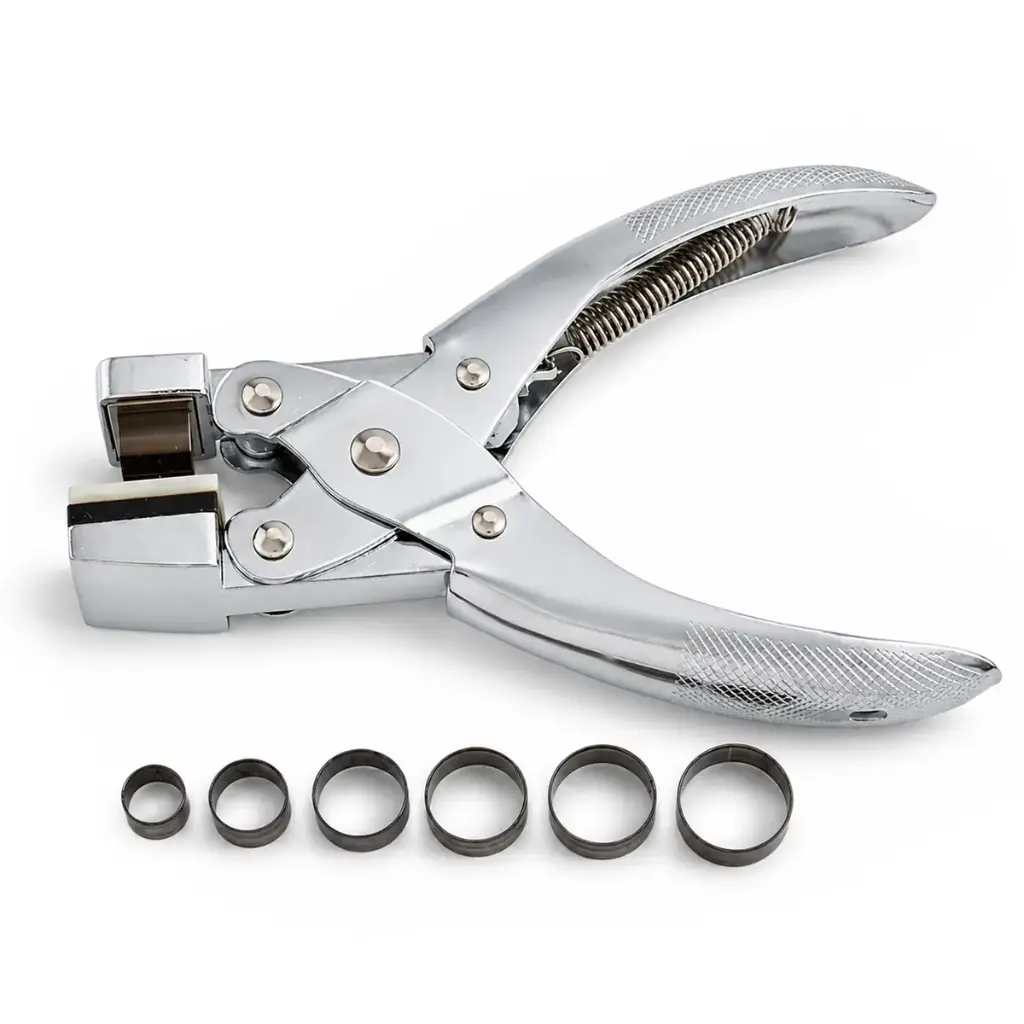

S4R Manual Electrode Disc Punch Pliers provide a compact solution for preparing circular samples from electrodes, separator films, membranes and other thin laboratory sheet materials. The spring-assisted manual mechanism incorporates a magnetic interchangeable-die system and is supplied with six selected round cutting diameters for electrochemistry and battery-research sample preparation.
Key Features
✓
Manual spring-assisted operation
✓
Metal body construction
✓
Magnetic interchangeable-die retention
✓
Six interchangeable round cutting dies
✓
Cutting diameters from Ø8 to Ø20 mm
✓
Compact handheld laboratory format
Typical Applications
•
Electrode disc preparation
•
Battery separator cutting
•
Polymer film preparation
•
Membrane sample preparation
•
Thin sheet and soft gasket preparation
•
General electrochemistry sample preparation
Technical Specifications
| Product Type | Manual laboratory disc punch pliers |
| Cutting Geometry | Round |
| Operation | Manual |
| Body Construction | Metal |
| Surface Finish | Chrome-plated metallic finish |
| Return Mechanism | Spring-assisted |
| Die Retention | Magnetic interchangeable-die system |
| Overall Tool Length | Approx. 157 mm |
| Overall Tool Height | Approx. 109 mm |
| Die Blade Height | Approx. 8 mm |
| Die Blade Thickness | Approx. 0.45 mm |
Included Round Dies
| Cutting Diameter | Typical Laboratory Use |
|---|---|
| Ø8 mm | Small sample discs |
| Ø10 mm | Electrode and membrane samples |
| Ø12 mm | General electrochemical sample preparation |
| Ø15 mm | Battery electrode preparation |
| Ø18 mm | Separator and larger electrode discs |
| Ø20 mm | Large film, membrane and separator discs |
Design & Handling
•
The magnetic die-retention system allows the cutting head
to be changed according to the required sample diameter.
•
The spring-assisted handles automatically return after
each punching operation.
•
The compact handheld format is suitable for routine
laboratory sample-preparation workflows.
Technical Notes
•
Cutting performance depends on material thickness,
hardness and elasticity.
•
Position the sample flat and centered beneath the die
before punching.
•
Inspect and clean the cutting edge periodically to maintain
consistent sample preparation.
Package Contents
1×
Manual Electrode Disc Punch Pliers
6×
Interchangeable Round Cutting Dies
Ø8 / Ø10 / Ø12 / Ø15 / Ø18 / Ø20 mm
Selection & Use
Select the cutting diameter according to the required sample size
and experimental configuration. Cutting performance depends on the
material and thickness being processed. Verify suitability with the
specific electrode, separator, membrane, film or sheet material
before routine use.
S4R Manual Electrode Disc Punch Pliers provide a compact solution for preparing circular samples from electrodes, separator films, membranes and other thin laboratory sheet materials. The spring-assisted manual mechanism incorporates a magnetic interchangeable-die system and is supplied with six selected round cutting diameters for electrochemistry and battery-research sample preparation.
Key Features
✓
Manual spring-assisted operation
✓
Metal body construction
✓
Magnetic interchangeable-die retention
✓
Six interchangeable round cutting dies
✓
Cutting diameters from Ø8 to Ø20 mm
✓
Compact handheld laboratory format
Typical Applications
•
Electrode disc preparation
•
Battery separator cutting
•
Polymer film preparation
•
Membrane sample preparation
•
Thin sheet and soft gasket preparation
•
General electrochemistry sample preparation
Technical Specifications
| Product Type | Manual laboratory disc punch pliers |
| Cutting Geometry | Round |
| Operation | Manual |
| Body Construction | Metal |
| Surface Finish | Chrome-plated metallic finish |
| Return Mechanism | Spring-assisted |
| Die Retention | Magnetic interchangeable-die system |
| Overall Tool Length | Approx. 157 mm |
| Overall Tool Height | Approx. 109 mm |
| Die Blade Height | Approx. 8 mm |
| Die Blade Thickness | Approx. 0.45 mm |
Included Round Dies
| Cutting Diameter | Typical Laboratory Use |
|---|---|
| Ø8 mm | Small sample discs |
| Ø10 mm | Electrode and membrane samples |
| Ø12 mm | General electrochemical sample preparation |
| Ø15 mm | Battery electrode preparation |
| Ø18 mm | Separator and larger electrode discs |
| Ø20 mm | Large film, membrane and separator discs |
Design & Handling
•
The magnetic die-retention system allows the cutting head
to be changed according to the required sample diameter.
•
The spring-assisted handles automatically return after
each punching operation.
•
The compact handheld format is suitable for routine
laboratory sample-preparation workflows.
Technical Notes
•
Cutting performance depends on material thickness,
hardness and elasticity.
•
Position the sample flat and centered beneath the die
before punching.
•
Inspect and clean the cutting edge periodically to maintain
consistent sample preparation.
Package Contents
1×
Manual Electrode Disc Punch Pliers
6×
Interchangeable Round Cutting Dies
Ø8 / Ø10 / Ø12 / Ø15 / Ø18 / Ø20 mm
Selection & Use
Select the cutting diameter according to the required sample size
and experimental configuration. Cutting performance depends on the
material and thickness being processed. Verify suitability with the
specific electrode, separator, membrane, film or sheet material
before routine use.
