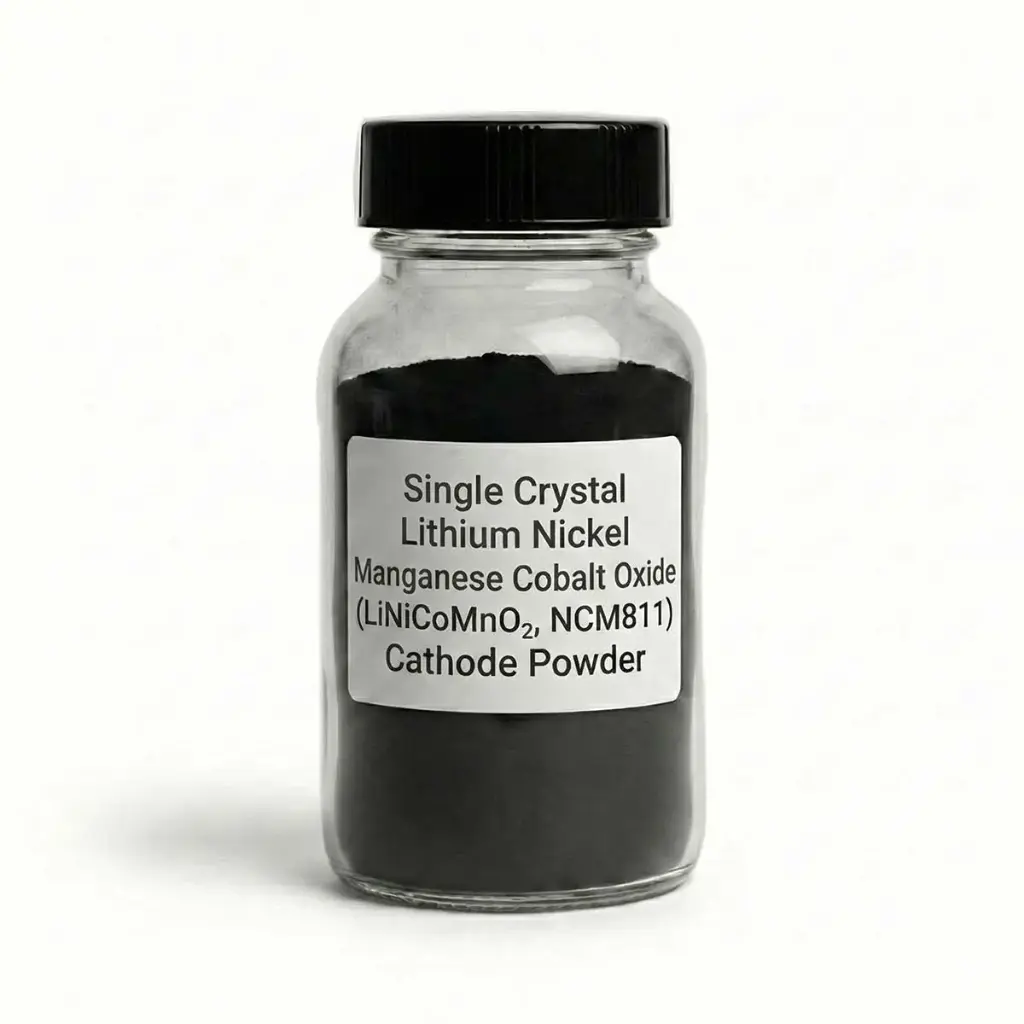

Single Crystal Lithium Nickel Manganese Cobalt Oxide (LiNiCoMnO₂, NCM811) Cathode Powder for Li-ion Battery Research – 200 g

This single-crystal LiNiCoMnO₂ (NCM811) cathode powder is designed for advanced Li-ion battery research, where high energy density and stable electrochemical behavior are required.

The single-crystal microstructure improves mechanical integrity and cycling stability compared to conventional polycrystalline NCM materials, particularly under high-voltage operation.

The controlled particle size distribution and low impurity levels make this material suitable for laboratory-scale electrode fabrication and electrochemical evaluation.

Pricing available to approved customers

Add this product to a quote request, or sign in to view your pricing.

This combination does not exist.

Qty

No account required. Add the products you need, then send your request to our technical sales team.

Request Pricing Access

Specification
Chemical Composition	Nickel (Ni)	82.8 mol%
	Cobalt (Co)	10.9 mol%
	Manganese (Mn)	6.2 mol%
Particle Size Distribution	D10	2.4 µm
	D50	4.4 µm
	D90	11.6 µm
Physical Properties	Specific surface area (BET)	0.79 m²/g
	Tap density	2.22 g/cm³
	Moisture content	281 ppm
	pH	11.44
Residual Lithium	Li₂CO₃	0.177 wt%
	LiOH	0.150 wt%
	Li (total)	7.39 wt%
Impurities	Iron (Fe)	21 ppm
	Copper (Cu)	2 ppm
	Sodium (Na)	13 ppm
	Sulfur (S)	260 ppm
Electrochemical Performance	Specific capacity @ 0.3 C (3.0–4.25 V)	195.8 mAh/g
Electrochemical Performance	Specific capacity @ 1 C (3.0–4.25 V)	185.6 mAh/g
