Layered Oxide NaNi₁/₃Fe₁/₃Mn₁/₃O₂ (NFM111) Cathode Sheet – Single-Side Coated on Aluminum Foil (241 × 200 mm), 5 Sheets/Bag
Single-sided NFM111 cathode sheets on aluminium foil for sodium-ion battery research. Each 241 × 200 mm sheet has a 241 × 175 mm coated area and two uncoated edge strips. Supplied as a bag of 5 sheets for cutting to your required electrode geometry.
No account required. Add the products you need, then send your request to our technical sales team.
Request Pricing AccessAlready have an approved account? Sign in
Single-sided NFM111 cathode sheets
Pre-coated layered-oxide electrodes for sodium-ion cell development. The single-sided coating leaves two aluminium edge strips exposed for current collection and handling. Cut the sheets to your electrode geometry before drying and cell assembly.
Technical specifications
| Parameter | Specification |
|---|---|
| Active material | Sodium nickel iron manganese oxide, NaNi₁/₃Fe₁/₃Mn₁/₃O₂ (NFM111) |
| Coating configuration | One face of the aluminium foil |
| Sheet dimensions | 241 × 200 mm (L × W) |
| Coated area | 241 × 175 mm on each coated face |
| Uncoated margins | 12.5 mm along each of the two opposite long edges |
| Current collector | Aluminium foil, 16 µm nominal thickness |
| Composite coating loading | 14.5 ± 0.2 mg/cm² on the coated face |
| Compaction density | 2.6 g/cm³ |
| Dry coating composition | 95.5% NFM111 · 2% PVDF binder · 2.5% Super P conductive carbon |
| Reference specific capacity | 120 mAh/g of active material; dependent on the test protocol |
| Supply | 5 electrode sheets per bag; one sales unit = one bag |

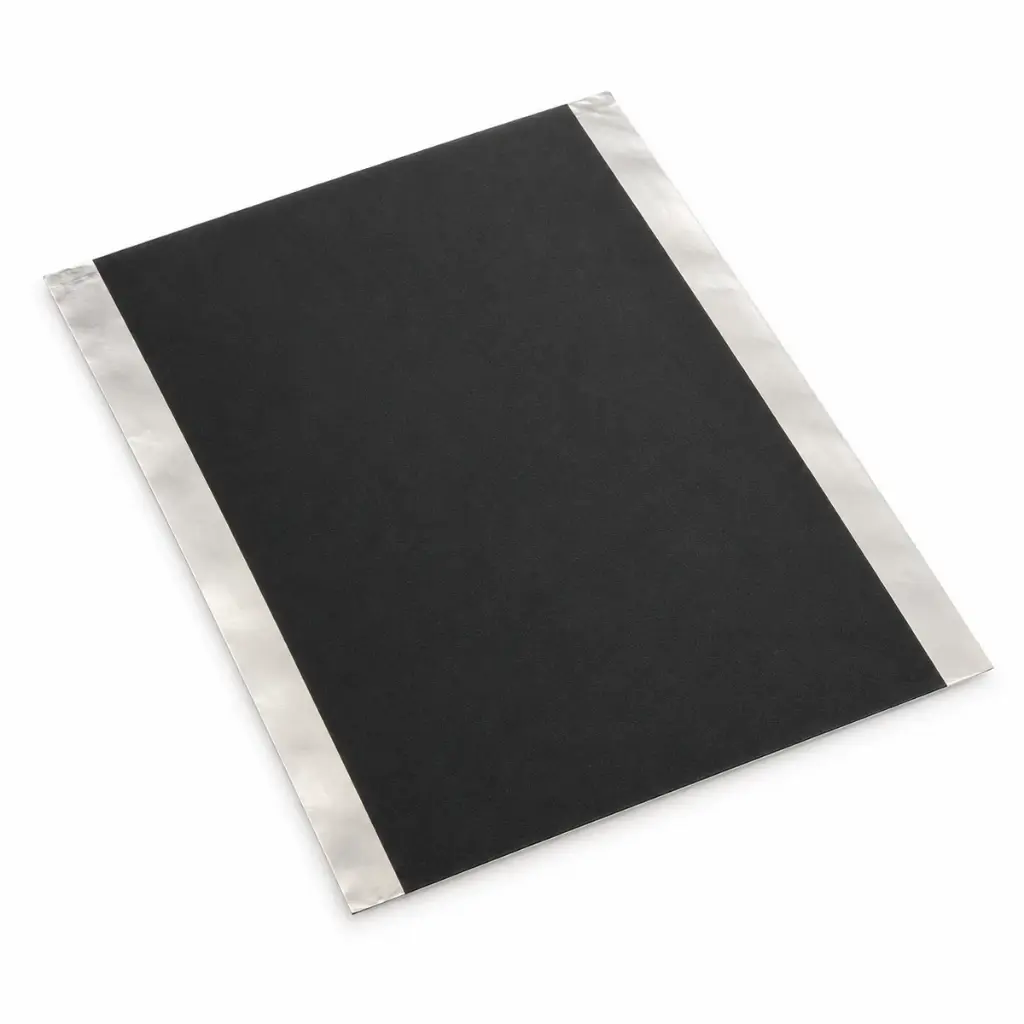

Nominal/reference values. Coating loading refers to the composite layer, not active material alone. The photograph illustrates the coated face of one sheet. Confirm the finished sheet thickness before use in a thickness-critical assembly.
Preparation and storage
Keep moisture exposure low
Vacuum-dry before use and store opened sheets in a glovebox. Confirm the drying cycle against the batch documentation and your cell chemistry.
Handle the coating carefully
Use clean tools; avoid scraping the coating or generating dust. Consult the applicable safety data sheet and your laboratory handling procedure before cutting or assembling electrodes.
