Copper Mesh Current Collector – 45 µm Thickness, 20 m Roll for Lithium-Ion Anode Fabrication

Copper Mesh Current Collector – 45 µm Thickness, 20 m Roll for Lithium-Ion Anode Fabrication

https://www.s4r.fr/web/image/product.template/105/image_1920?unique=ce393d6

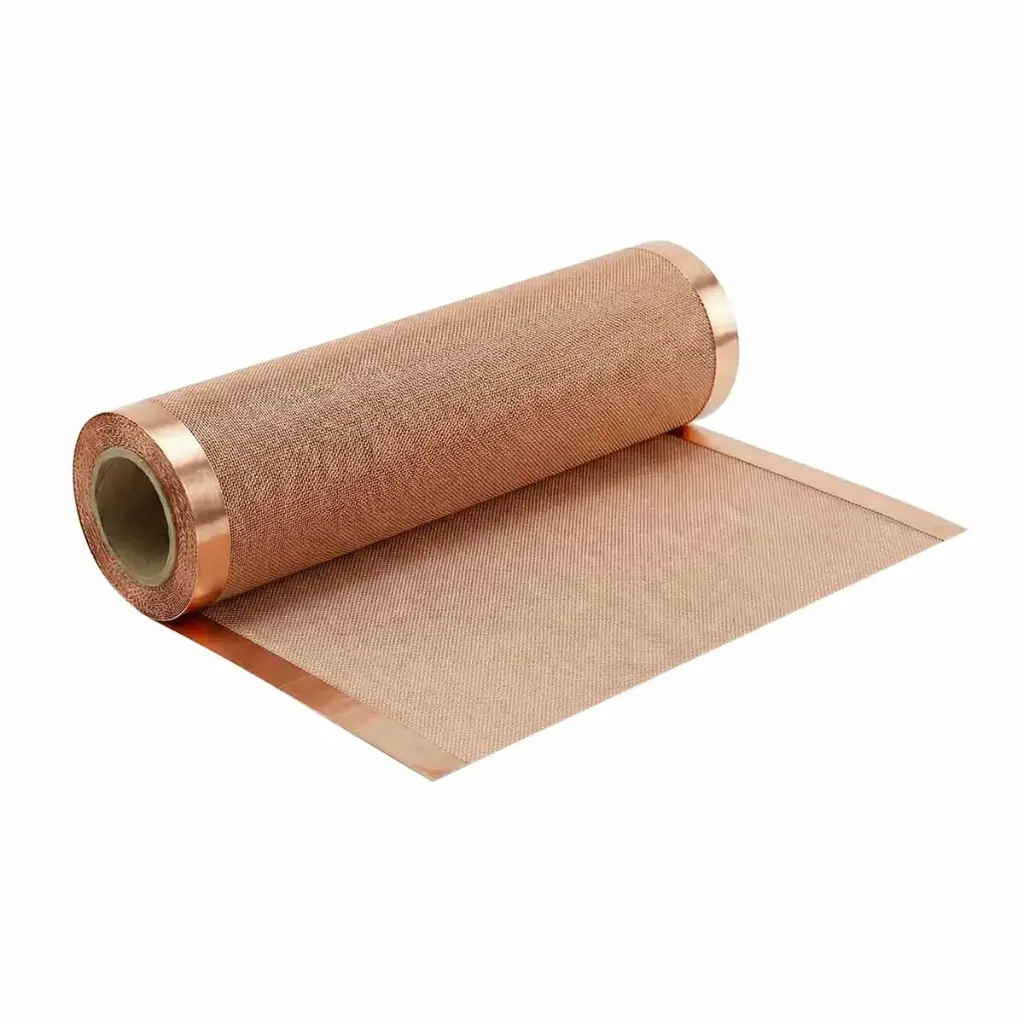

This 45 µm copper mesh roll is used as a current collector substrate for lithium-ion battery anode fabrication and electrochemical research. It is supplied in 20 m roll format with a 240 mm width.

The mesh features 0.4 × 1.5 mm pore dimensions with approximately 55% open area. Surface density is 180 ± 15 g/m², and each roll weighs about 1.5 kg.

0.00 € 0.0 EUR 0.00 €

Worldwide shipping

Shipping costs and lead time confirmed with your quotation.

Secure payment

Card payment and purchase orders accepted.

Technical support

Configuration and compatibility support from our engineers.

Pricing available to approved customers

Sign in to view your pricing, or request access to an S4R professional account.

This combination does not exist.

Request Pricing Access
Specification
Material Copper (Purity ≥99.99%)
Structure Copper mesh roll
Thickness 45 µm
Width 240 mm
Length 20 m
Density 8.94 g·cm⁻³
Surface Density 180 ± 15 g/m²
Pore Size 0.4 × 1.5 mm
Open Area ~55 %
Net Weight 1.5 kg per roll
Packaging Vacuum sealed
Form Solid roll
