Mini Tape Casting Coater with Heated Vacuum Bed

Mini Tape Casting Coater with Heated Vacuum Bed

https://www.s4r.fr/shop/s4r-bat-ccc9020a-mini-tape-casting-coater-with-heated-vacuum-bed-22 https://www.s4r.fr/web/image/product.template/22/image_1920?unique=779861b
Compact motorized tape casting coater for laboratory battery electrode preparation. Combines an adjustable coating speed with a heated vacuum bed to hold substrates in place during coating. Supplied with a 24 V DC vacuum pump and an 80 mm film applicator offering four fixed gaps: 50, 100, 150 and 200 µm.

0.00 € 0.0 EUR 0.00 €

Available by quotation only

Please request a quote for pricing and lead time. Our technical sales team will send you a complete offer including delivery.

This combination does not exist.

Request a Quote
Battery electrode preparation

Compact coating.
Controlled application.

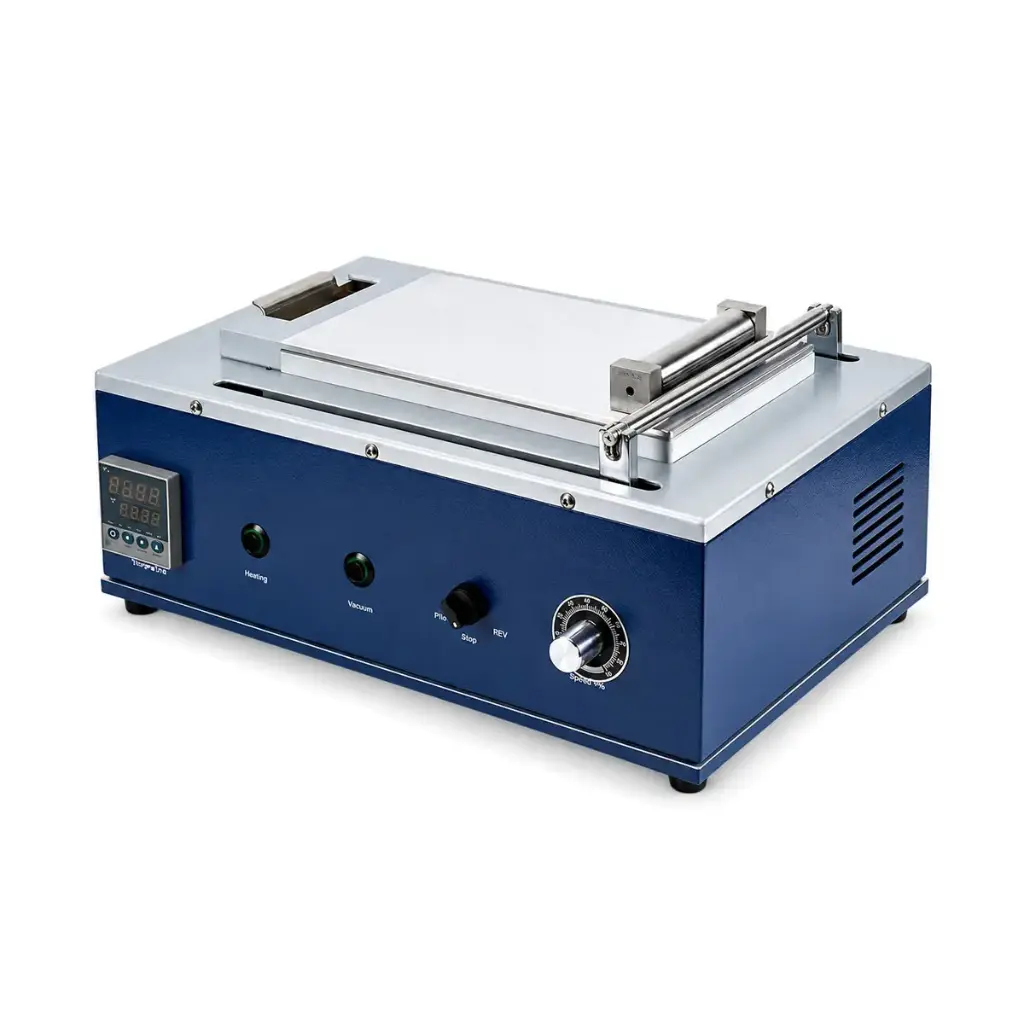

Motorized tape casting with a heated vacuum bed

Prepare laboratory electrode coatings with adjustable applicator speed and a 190 × 90 mm vacuum bed heated up to 120 °C. The compact platform supports slurry coating on current collectors and other suitable substrates.

Supplied with a vacuum pump and a fixed-gap film applicator. Optional applicators provide additional gap settings and coating configurations.

Standard configuration

Applicator & vacuum pump included

80 mm
Maximum width with the standard applicator
4 gaps
50, 100, 150 and 200 µm
0–50
Adjustable travel speed in mm/s
120 °C
Maximum vacuum-bed temperature

The four values are applicator gaps. Final coating thickness depends on the slurry and process conditions.

Coating functions

Control the application parameters

Motorized drawdown

A 24 V DC brushless motor drives the pushing bar at an adjustable travel speed.

Vacuum hold-down

The micro-perforated aluminium alloy chuck holds the substrate against the bed during coating.

Heating up to 120 °C

Heating elements inside the vacuum bed are controlled by a digital temperature controller.

Applicator options

Choose the included fixed-gap applicator or an optional adjustable-gap or slot-die configuration.

Technical data

Specifications

ParameterSpecification
Coating systemMotorized tape casting with a film applicator and pushing bar
Power supply100–240 V AC input; 24 V DC output power adapter included
Drive motor24 V DC brushless motor
Specified maximum power30 W
Travel speed0–50 mm/s, adjustable
Travel distance0–360 mm, adjustable
Vacuum bedMicro-perforated aluminium alloy chuck
Vacuum chuck area190 × 90 mm (L × W)
Heating systemHeating elements integrated into the vacuum bed
Maximum bed temperature120 °C
Temperature controlDigital, single-point control; specified controller accuracy: ±1 °C
Vacuum pump24 V DC pump included; powered by the coater
Vacuum connectionFitting for tubing with an 8 mm outside diameter
Standard applicatorOne film applicator with four fixed gaps: 50, 100, 150 and 200 µm
Standard coating widthUp to 80 mm with the included applicator
Maximum coating area (reference)200 × 100 mm (L × W); actual coating area depends on the selected applicator and substrate support
Film thickness accuracy (reference)±2 µm
Top coverIncluded for use during drying after coating
Overall dimensions with cover360 × 220 × 210 mm (L × D × H)
Height without cover155 mm
Net weight18 kg
ComplianceCE; NRTL or CSA certification available on request at additional cost
Coating dimensions and reference accuracyThe vacuum chuck area, reference coating area and applicator width describe different parameters. The standard applicator provides a coating width of up to 80 mm; select the usable area to suit the substrate support and applicator. The gap setting and reference ±2 µm accuracy are not a guarantee of final dry-film thickness, which depends on the slurry and process conditions. The temperature-controller accuracy does not specify temperature uniformity across the bed.

Equipment & accessories

Included as standard. Options for your process.

Included

Standard package

  • Mini tape casting coater with heated vacuum bed and motorized pushing bar.
  • One 80 mm film applicator with 50, 100, 150 and 200 µm fixed gaps.
  • 24 V DC vacuum pump.
  • 100–240 V AC / 24 V DC power adapter.
  • Top cover for drying after coating.
  • Waste plate for excess slurry.
  • Stainless steel slurry boat.
Optional · additional cost

Alternative applicators & integration

  • Micrometer-adjustable film applicator.
  • Film applicators in alternative widths and configurations.
  • Hybrid slot-die film applicator.
  • Slot-die applicator with precision digital micrometers.
  • KF40 feedthrough for argon-glovebox integration.

Specify the required coating width and applicator type when requesting a quotation.

Laboratory use

From slurry development to electrode coating

Designed for laboratory battery electrode preparation and the application of polymer or conductive ceramic coatings on suitable substrates.

Benchtop coating & drying

Use the heated bed and included top cover to support drying after coating. Operation under a fume hood is recommended. Select slurry preparation and subsequent drying conditions to suit the coating formulation.

Argon-glovebox integration

The coater supports use in an argon glovebox. An optional KF40 feedthrough is required for this installation. Check antechamber clearance and installation requirements for the complete setup before ordering.
