Custom Fused Quartz Components — Made to Drawing

Custom Fused Quartz Components — Made to Drawing

https://www.s4r.fr/web/image/product.template/284/image_1920?unique=1623012

Custom fused quartz components manufactured to dimensional specifications or technical drawings for laboratory, furnace and high-temperature research applications.

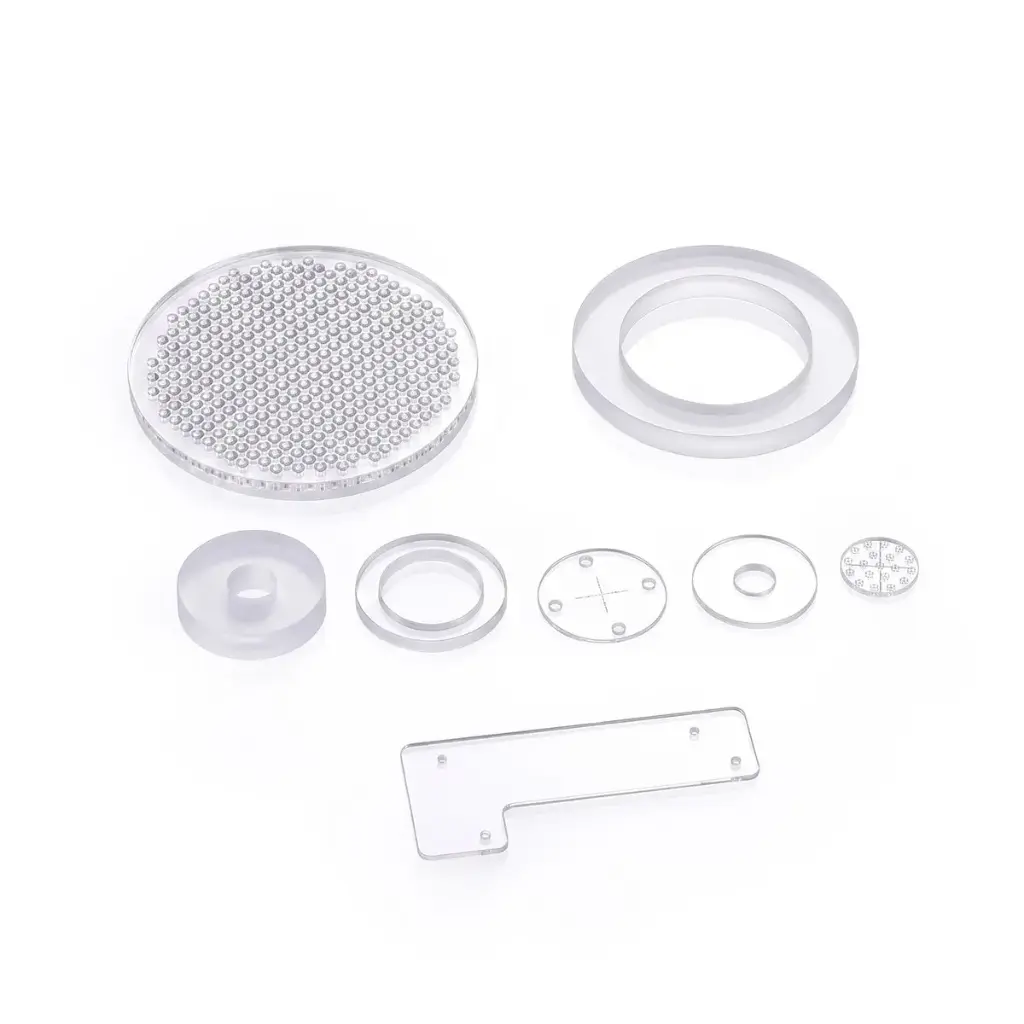

Custom geometries can include plates, discs, rings, supports and other quartz components with holes, slots, internal openings or application-specific profiles. Dimensions, thicknesses and detailed features are defined according to the required assembly and operating environment.

This product is made to order. Please provide a technical drawing or dimensional specification together with the required quantity for review and quotation.

0.00 € 0.0 EUR 0.00 €

Available by quotation only

This product is custom-made to order. Please request a quote for pricing and lead time.

This combination does not exist.

Request a Quote

Custom fused quartz components are produced for laboratory systems where standard tubes, plates, discs or rings do not provide the required geometry. Each component is defined from the dimensional requirements of the assembly, including overall size, thickness, openings, holes, slots and other functional features. A technical drawing is recommended for complex or tolerance-sensitive designs.

Key Features

✓ High-purity fused quartz construction
✓ Fully customized dimensions and geometry
✓ Plates, discs, rings and shaped components
✓ Holes, slots and internal openings available
✓ Reference maximum temperature of 1200°C
✓ Manufacture from dimensional specification or technical drawing

Typical Applications

• Laboratory furnace assemblies
• High-temperature support components
• Sample and component positioning
• Thermal-processing fixtures
• Custom quartz laboratory apparatus
• Research and materials-processing assemblies
Technical Specifications
Material High-purity fused quartz
Product Type Custom fused quartz component
Reference SiO₂ Purity 99.99–99.9997%
Reference Maximum Temperature 1200°C
Linear Thermal Expansion 5.5 × 10−7 K−1
Overall Dimensions Custom
Thickness Custom
Geometry According to dimensional specification or technical drawing
Typical Custom Geometries
Plates & Sheets Square, rectangular or application-specific profiles
Discs Solid, drilled or perforated configurations
Rings Custom OD, ID and thickness
Openings & Holes According to dimensional requirement
Slots & Special Profiles According to technical drawing
Information Required for Quotation
Overall Dimensions Required
Thickness Required where applicable
Holes / Slots / Openings Dimensions and positions where applicable
Quantity Required
Technical Drawing Recommended for complex geometries
Technical Notes
• Final geometry should be specified with sufficient dimensional information for manufacturing review.
• Avoid sudden temperature changes and localized mechanical impact during high-temperature operation.
• Mechanical support and operating conditions should be considered when defining thin or large-format components.
• Do not expose fused quartz components to hydrofluoric acid or fluoride-containing media.
Supply
Made to Order — Quotation Required
Manufactured according to approved dimensions or technical drawing
Custom Configuration
This product is manufactured to order. Please provide the required dimensions, geometry, thickness, quantity and any holes, slots or other functional features. For complex parts or defined dimensional tolerances, include a technical drawing with the quotation request.
