Quick-Release Tube Furnace Flange Set - KF Vacuum Port

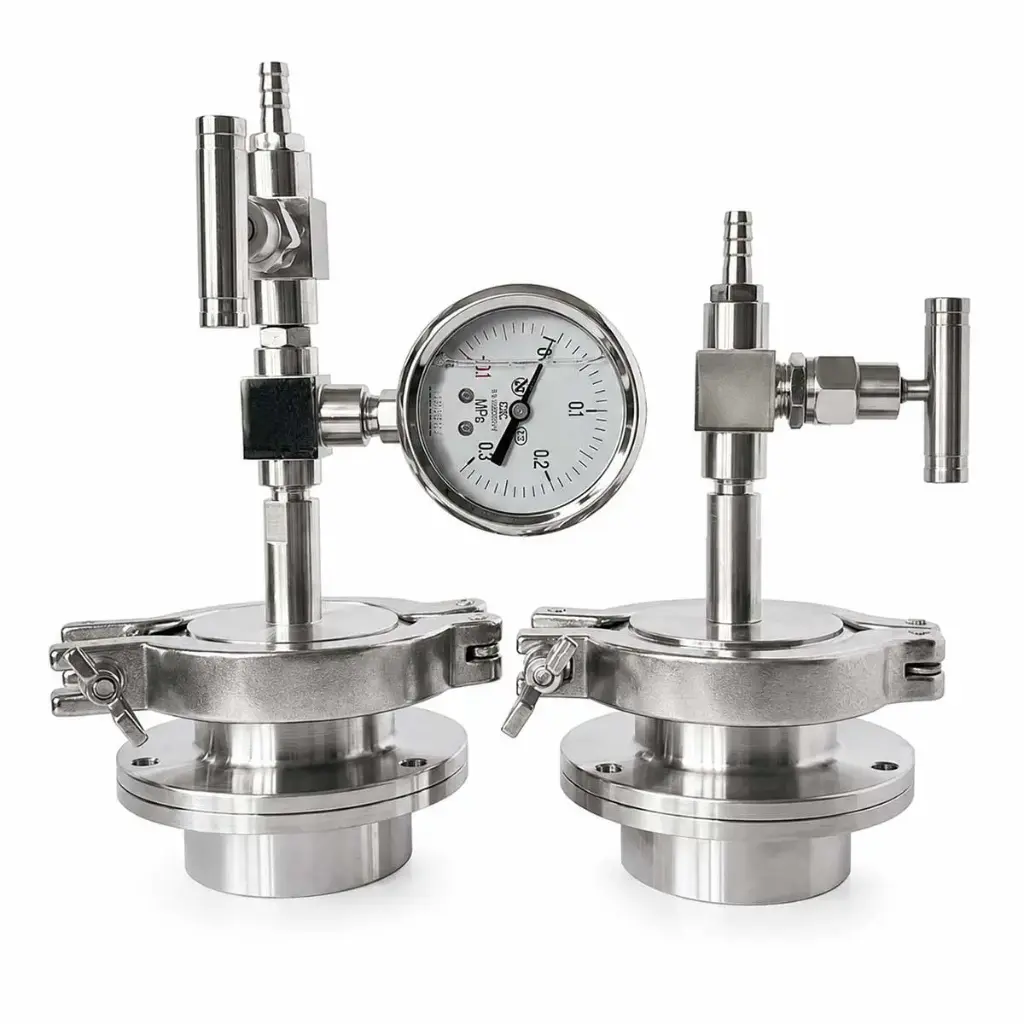

The S4R Quick-Release Tube Furnace Flange Set — KF Vacuum Port provides a removable sealing system for laboratory furnace tubes requiring convenient access to vacuum or controlled-atmosphere connections.

The stainless-steel assemblies use a quick-release clamping design for easier opening and reassembly of the tube ends. A KF vacuum interface allows connection to compatible vacuum equipment, while additional gas, valve or gauge connections can be integrated according to the selected configuration.

The standard S4R set is supplied with the corresponding sealing components, quick-release clamps and fastening hardware. Standard configurations are available for commonly used quartz and ceramic furnace-tube diameters, with custom assemblies available on request.

Pricing available to approved customers

Compatible Tube OD (mm)

This combination does not exist.

Request Pricing Access

The S4R Quick-Release Tube Furnace Flange Set provides a removable sealing interface for laboratory furnace tubes used with vacuum or controlled-atmosphere systems. The stainless-steel assemblies combine tube-end sealing components with quick-release clamps for convenient opening and reassembly, while a KF vacuum interface provides connection to compatible vacuum equipment.

Key Features

✓ Stainless-steel flange construction

✓ Quick-release clamping system

✓ KF vacuum connection interface

✓ Removable tube-end sealing assembly

✓ Sealing components and fastening hardware included

✓ Standard and custom configurations available

Typical Applications

• Laboratory tube furnace systems

• Vacuum-assisted thermal processing

• Controlled-atmosphere furnaces

• Quartz and ceramic furnace tubes

• Materials-processing experiments

• Research furnace and vacuum assemblies

Technical Specifications

Flange Material	Stainless steel
Product Type	Quick-release tube furnace sealing flange set
Clamping System	Quick-release mechanical clamp
Standard Compatible Tube OD	25 / 40 / 50 / 60 / 80 / 100 mm
Furnace Tube Application	Quartz and compatible ceramic furnace tubes
Vacuum Interface	KF connection
KF Connection Size	Configuration-dependent — confirm when ordering
Custom Configuration	Available on request

Standard Compatible Tube Sizes

Ø25 mm	Standard
Ø40 mm	Standard
Ø50 mm	Standard
Ø60 mm	Standard
Ø80 mm	Standard
Ø100 mm	Standard

Quick-Release & Vacuum Interface

Tube-End Assembly	Removable sealing flange
Access System	Quick-release clamp
Vacuum Connection	KF interface for compatible vacuum components

Package Contents

• Tube furnace flange assemblies

• Quick-release clamp components

• Matching sealing components

• Required fastening hardware for the selected configuration

Technical Notes

• Select the flange according to the actual outside diameter of the furnace tube.

• Ensure that all sealing surfaces and sealing components are clean and correctly positioned before assembly.

• Tighten tube-end fastening components evenly to reduce localized mechanical loading on the furnace tube.

• The KF connection size and auxiliary port arrangement depend on the selected configuration and should be confirmed when ordering.

• Vacuum performance depends on the complete system, including the tube, seals, flange installation, KF connections and vacuum equipment.

Supply

Complete Quick-Release Flange Configuration
Supplied with the corresponding sealing, clamping and fastening components

Selection & Custom Configuration

Standard configurations are available for furnace tubes with outside diameters of 25, 40, 50, 60, 80 and 100 mm. For non-standard tube diameters, specific KF connection sizes or additional gas, valve or gauge ports, please provide the tube outside diameter, tube material, required connection configuration and quantity.
