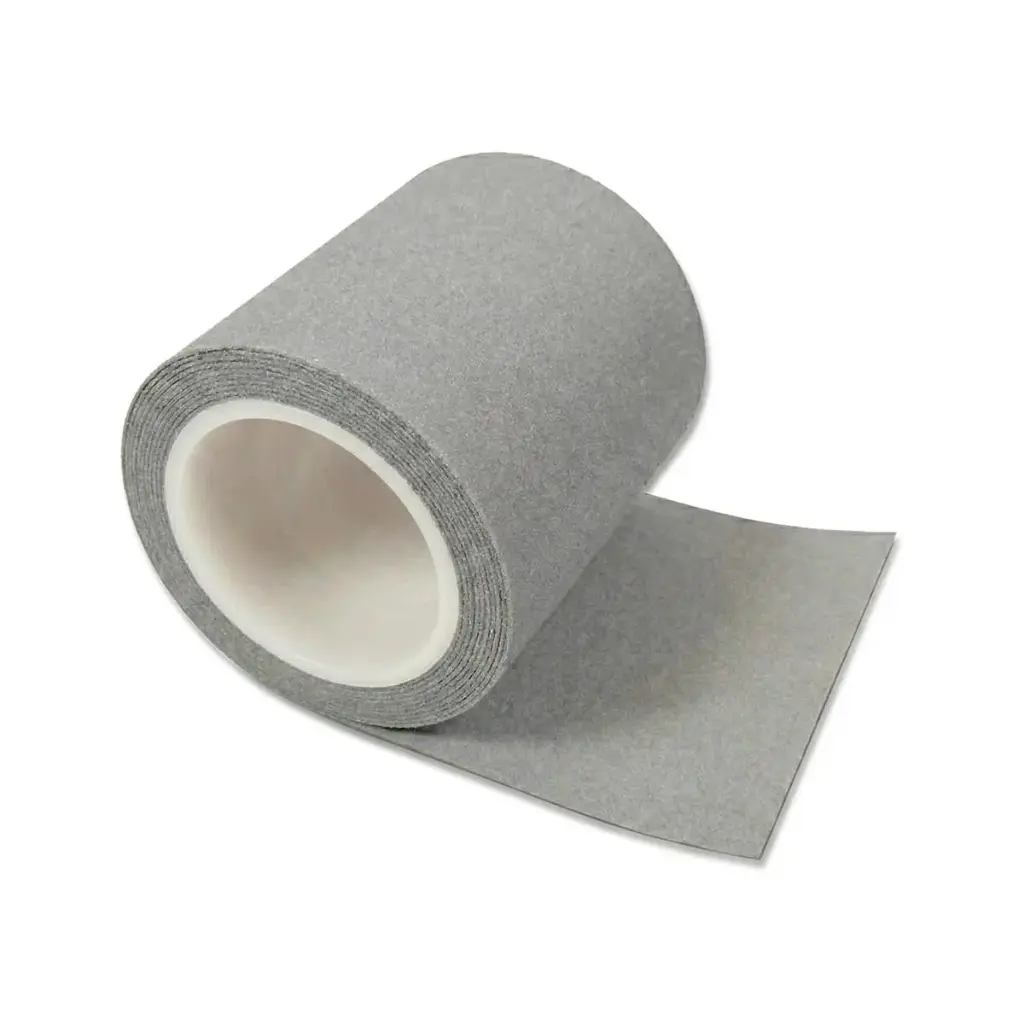

Nickel Foam Roll for Battery Cathode Substrate

High-purity nickel foam roll designed for battery cathode substrate and solid-state electrolyte support.

Available in multiple thicknesses for laboratory research and pilot-scale battery assembly

Add this product to a quote request, or sign in to view your pricing.

This combination does not exist.

Qty

No account required. Add the products you need, then send your request to our technical sales team.

Specification
Material	Composition	Nickel Foam
	Purity	≥ 99.9 %
	Structure	Open-cell conductive porous structure
	Application	Cathode substrate / Solid-state electrolyte support
Porous Structure	Porosity	≥ 95 %
	PPI	80–110
	Average Pore Size	~0.25 mm
Mechanical Properties	Tensile Strength (L)	≥ 1.25 N/mm²
	Tensile Strength (W)	≥ 1.00 N/mm²
	Extensibility (L)	≥ 5 %
	Extensibility (W)	≥ 12 %
Dimensions	Length	1000 mm
	Width	200 mm / 300 mm
	Thickness	0.2 / 0.5 / 1.6 mm
	Surface Density	346 g/m²

Thickness	Length	Width	Surface Density	Porosity	Format
0.2 mm	1000 mm	200 mm	~346 g/m²	≥95% (80–110 PPI)	Roll
0.5 mm	1000 mm	200 mm	~346 g/m²	≥95% (80–110 PPI)	Roll
1.6 mm	1000 mm	300 mm	~346 g/m²	≥95% (80–110 PPI)	Roll
