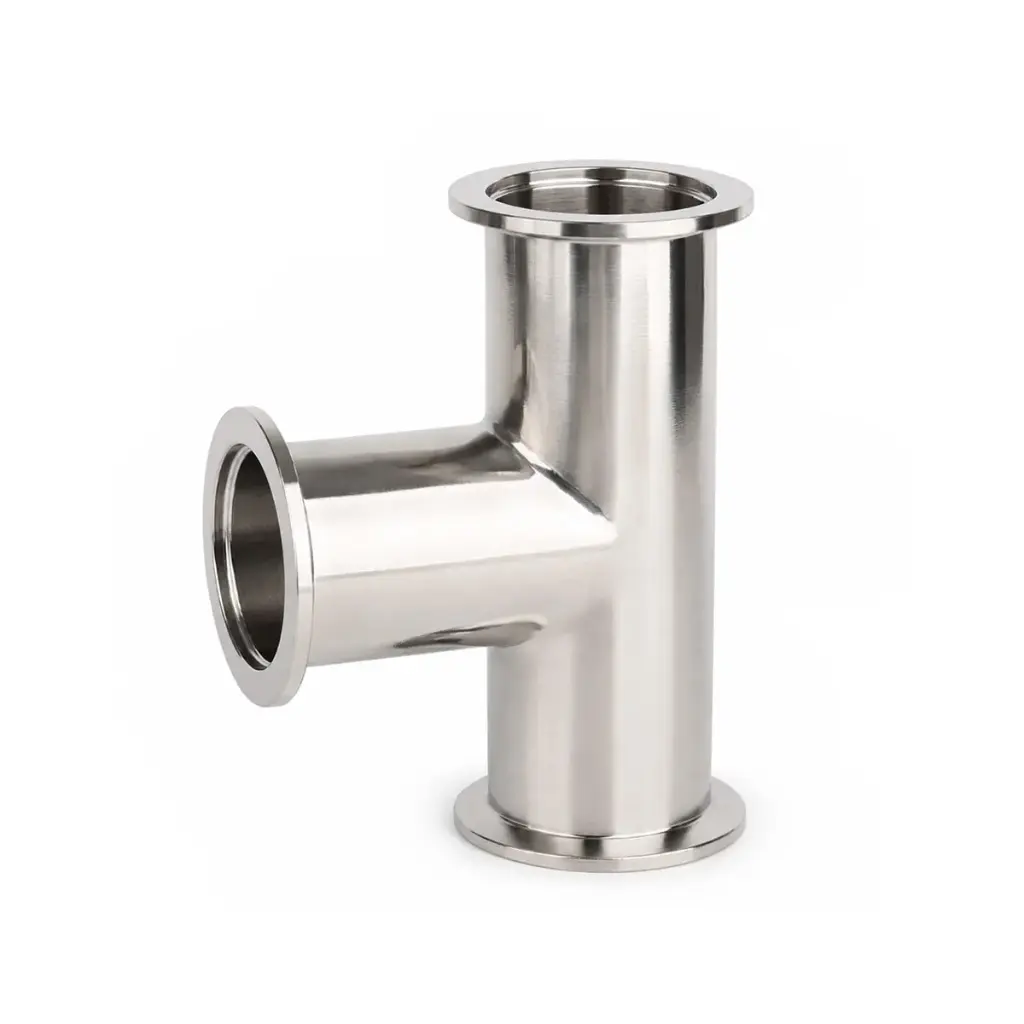

KF Vacuum Tee

KF Vacuum Tee

https://www.s4r.fr/shop/kf-vacuum-tee-303 https://www.s4r.fr/web/image/product.template/303/image_1920?unique=cff4d79

The S4R KF Vacuum Tee provides a three-way connection for branching compatible KF vacuum or gas lines within laboratory systems.

Manufactured from 304 stainless steel, the fitting incorporates three matching KF quick-flange interfaces of the same nominal size. It is suitable for adding a vacuum gauge, valve, secondary line or additional system component to an existing KF assembly.

0.00 € 0.0 EUR 0.00 €

Pricing available to approved customers

Add this product to a quote request, or sign in to view your pricing.

  • KF Flange Size

This combination does not exist.

No account required. Add the products you need, then send your request to our technical sales team.

Request Pricing Access

The S4R KF Vacuum Tee provides a three-way connection for branching compatible KF vacuum or gas lines within laboratory systems. Manufactured from 304 stainless steel, the fitting incorporates three matching KF quick-flange interfaces of the same nominal size, allowing an additional component or secondary line to be integrated into an existing KF assembly.

Key Features

✓ 304 stainless steel construction
✓ Three-way KF connection
✓ Three matching KF flange interfaces
✓ Removable modular system integration
✓ KF16, KF25, KF40 and KF50 standard sizes
✓ Suitable for laboratory vacuum and gas systems

Typical Applications

• Laboratory vacuum lines
• Tube furnace vacuum systems
• Vacuum gauge connections
• Valve and pump integration
• Gas and vacuum manifolds
• Research instrumentation assemblies
Technical Specifications
Product Type KF vacuum equal tee
Material 304 stainless steel
Configuration Three-way equal tee
End Connections Three matching KF quick-flange interfaces
Available Sizes KF16 / KF25 / KF40 / KF50
Connection Principle
Main Line Two opposing KF ports maintain the primary vacuum or gas line
Branch Port Third matching KF port provides a 90° branch for an additional component or line
Technical Notes
• Select the tee according to the KF flange size of the connected system components.
• Each active KF connection requires the corresponding centering ring, O-ring and quick clamp.
• Ensure that all flange and sealing surfaces are clean before assembly.
• Vacuum performance depends on the complete installation and the condition of all sealing interfaces.
Supply
1 × KF Vacuum Tee
KF clamps, centering rings and O-rings not included
