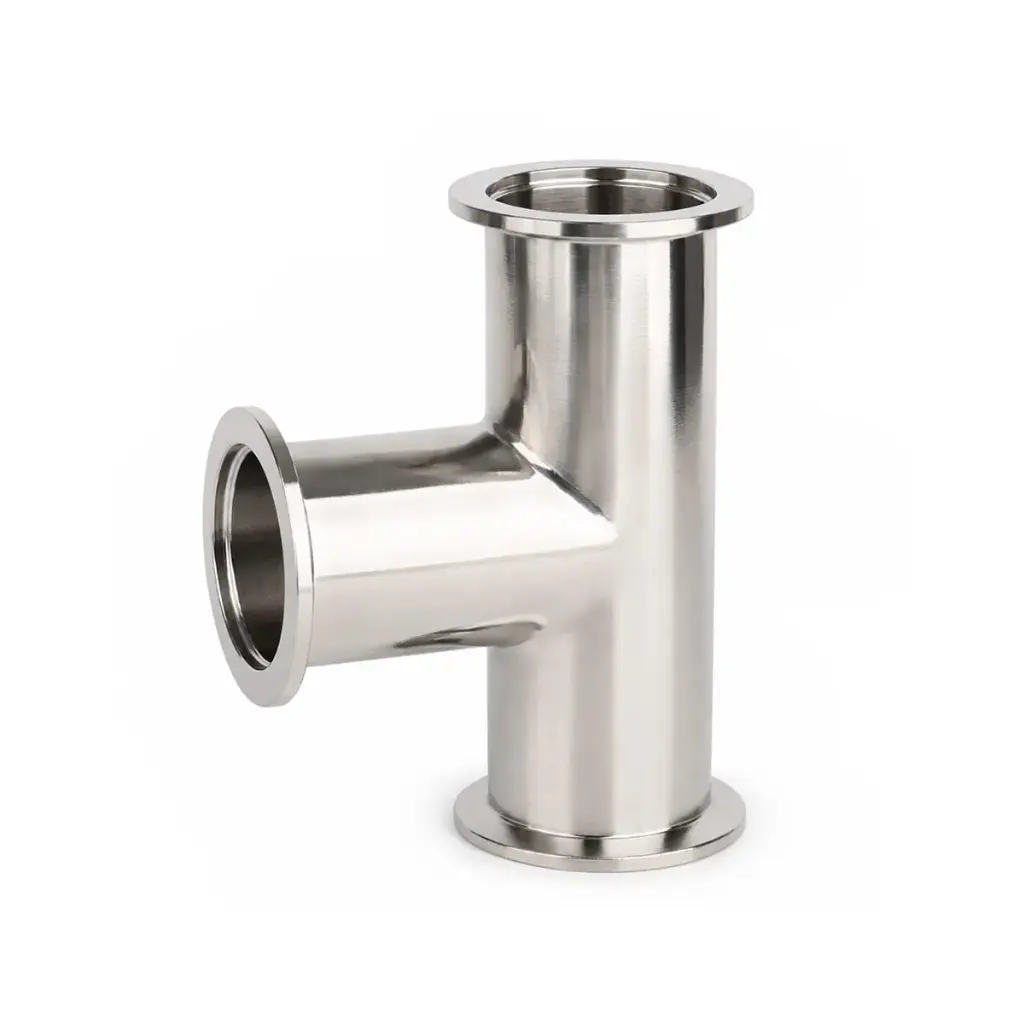

KF Vacuum Tee

KF Vacuum Tee

https://www.s4r.fr/web/image/product.template/303/image_1920?unique=718a9e5

The S4R KF Vacuum Tee provides a three-way connection for branching compatible KF vacuum or gas lines within laboratory systems.

Manufactured from 304 stainless steel, the fitting incorporates three matching KF quick-flange interfaces of the same nominal size. It is suitable for adding a vacuum gauge, valve, secondary line or additional system component to an existing KF assembly.

0.00 € 0.0 EUR 0.00 €

Pricing available to approved customers

Sign in to view your pricing, or request access to an S4R professional account.

  • KF Flange Size

This combination does not exist.

Request Pricing Access

The S4R KF Vacuum Tee provides a three-way connection for branching compatible KF vacuum or gas lines within laboratory systems. Manufactured from 304 stainless steel, the fitting incorporates three matching KF quick-flange interfaces of the same nominal size, allowing an additional component or secondary line to be integrated into an existing KF assembly.

Key Features

✓ 304 stainless steel construction
✓ Three-way KF connection
✓ Three matching KF flange interfaces
✓ Removable modular system integration
✓ KF16, KF25, KF40 and KF50 standard sizes
✓ Suitable for laboratory vacuum and gas systems

Typical Applications

• Laboratory vacuum lines
• Tube furnace vacuum systems
• Vacuum gauge connections
• Valve and pump integration
• Gas and vacuum manifolds
• Research instrumentation assemblies
Technical Specifications
Product Type KF vacuum equal tee
Material 304 stainless steel
Configuration Three-way equal tee
End Connections Three matching KF quick-flange interfaces
Available Sizes KF16 / KF25 / KF40 / KF50
Connection Principle
Main Line Two opposing KF ports maintain the primary vacuum or gas line
Branch Port Third matching KF port provides a 90° branch for an additional component or line
Technical Notes
• Select the tee according to the KF flange size of the connected system components.
• Each active KF connection requires the corresponding centering ring, O-ring and quick clamp.
• Ensure that all flange and sealing surfaces are clean before assembly.
• Vacuum performance depends on the complete installation and the condition of all sealing interfaces.
Supply
1 × KF Vacuum Tee
KF clamps, centering rings and O-rings not included
