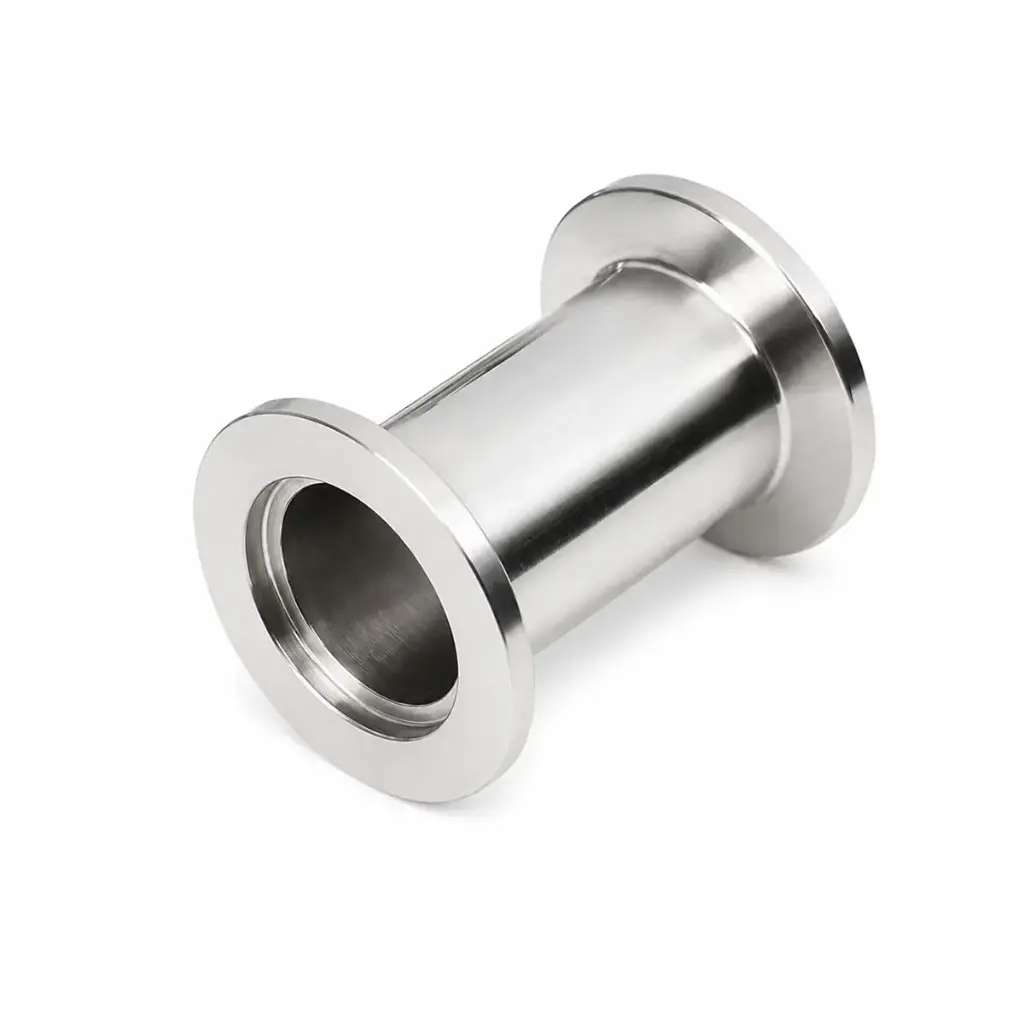

KF Vacuum Straight Nipple

KF Vacuum Straight Nipple

https://www.s4r.fr/shop/kf-vacuum-straight-nipple-304 https://www.s4r.fr/web/image/product.template/304/image_1920?unique=cff4d79

The S4R KF Vacuum Straight Nipple provides a rigid in-line connection between compatible KF vacuum components for laboratory vacuum and controlled-atmosphere systems.

Manufactured from 304 stainless steel, the fitting incorporates matching KF quick-flange interfaces at both ends, allowing two components of the same nominal KF size to be connected through a straight section.

It is particularly suitable for tube furnace vacuum lines, pumps, manifolds and laboratory equipment requiring a simple rigid extension between KF components.

0.00 € 0.0 EUR 0.00 €

Pricing available to approved customers

Add this product to a quote request, or sign in to view your pricing.

  • KF Flange Size

This combination does not exist.

No account required. Add the products you need, then send your request to our technical sales team.

Request Pricing Access

The S4R KF Vacuum Straight Nipple provides a rigid in-line connection between compatible KF vacuum components. Manufactured from 304 stainless steel, the fitting incorporates matching KF quick-flange interfaces at both ends, providing a simple straight extension within laboratory vacuum and controlled-atmosphere systems.

Key Features

✓ 304 stainless steel construction
✓ Straight rigid vacuum-line connection
✓ Matching KF flange interfaces at both ends
✓ Simple modular system integration
✓ KF16, KF25, KF40 and KF50 standard sizes
✓ Suitable for laboratory vacuum and gas systems

Typical Applications

• Laboratory vacuum lines
• Tube furnace vacuum systems
• Vacuum pump connections
• Gas and vacuum manifolds
• Research instrumentation
• Rigid KF line extensions
Technical Specifications
Product Type KF vacuum straight nipple
Material 304 stainless steel
Configuration Straight rigid connection
End Connections Two matching KF quick-flange interfaces
Available Sizes KF16 / KF25 / KF40 / KF50
Connection Principle
First KF End Connects to the corresponding KF system component
Intermediate Section Provides a rigid straight extension between components
Second KF End Matching KF interface for connection to the next component
Technical Notes
• Select the nipple according to the KF flange size of the connected components.
• A compatible KF centering ring, O-ring and quick clamp are required at each connection.
• Ensure that flange and sealing surfaces are clean before assembly.
• Vacuum performance depends on the complete installation and the condition of all sealing interfaces.
Supply
1 × KF Vacuum Straight Nipple
KF clamps, centering rings and O-rings not included
