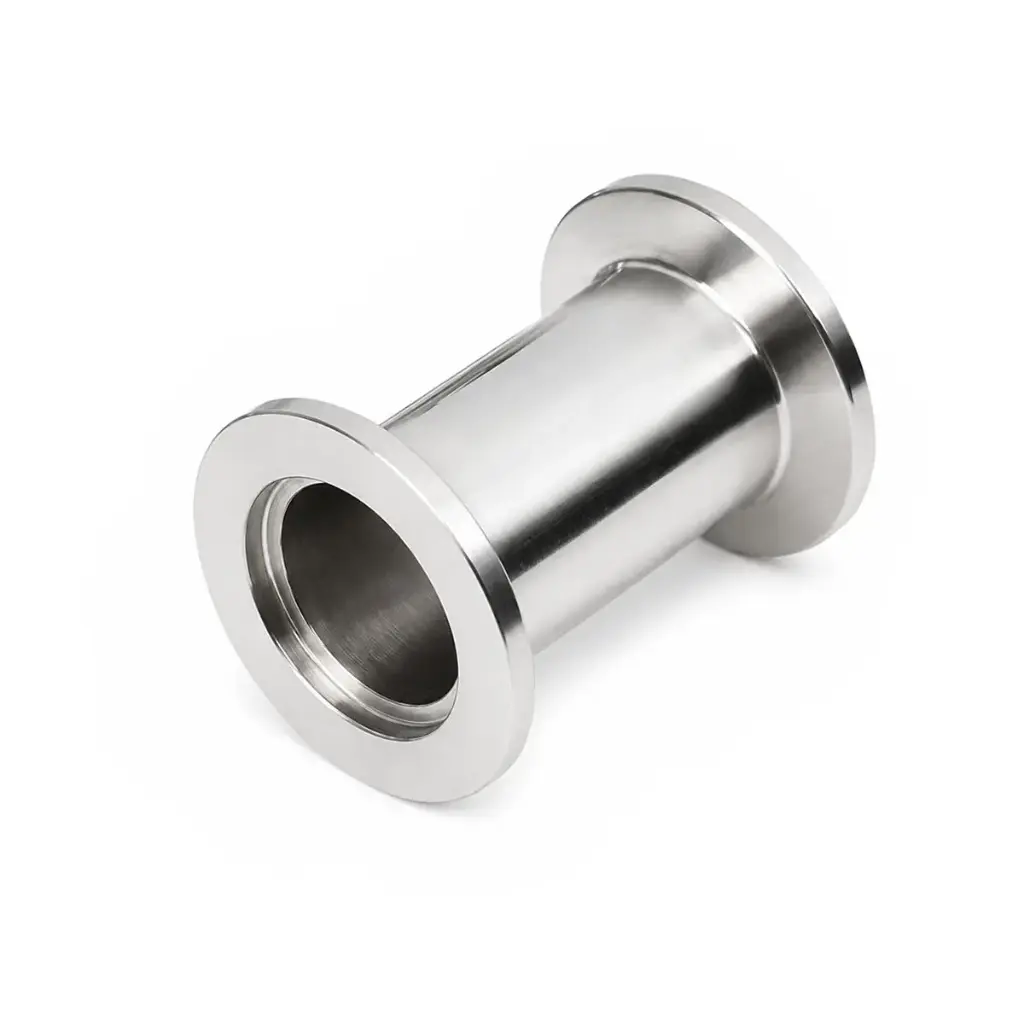

KF Vacuum Straight Nipple

KF Vacuum Straight Nipple

https://www.s4r.fr/web/image/product.template/304/image_1920?unique=b3bfd4c

The S4R KF Vacuum Straight Nipple provides a rigid in-line connection between compatible KF vacuum components for laboratory vacuum and controlled-atmosphere systems.

Manufactured from 304 stainless steel, the fitting incorporates matching KF quick-flange interfaces at both ends, allowing two components of the same nominal KF size to be connected through a straight section.

It is particularly suitable for tube furnace vacuum lines, pumps, manifolds and laboratory equipment requiring a simple rigid extension between KF components.

0.00 € 0.0 EUR 0.00 €

Pricing available to approved customers

Sign in to view your pricing, or request access to an S4R professional account.

  • KF Flange Size

This combination does not exist.

Request Pricing Access

The S4R KF Vacuum Straight Nipple provides a rigid in-line connection between compatible KF vacuum components. Manufactured from 304 stainless steel, the fitting incorporates matching KF quick-flange interfaces at both ends, providing a simple straight extension within laboratory vacuum and controlled-atmosphere systems.

Key Features

✓ 304 stainless steel construction
✓ Straight rigid vacuum-line connection
✓ Matching KF flange interfaces at both ends
✓ Simple modular system integration
✓ KF16, KF25, KF40 and KF50 standard sizes
✓ Suitable for laboratory vacuum and gas systems

Typical Applications

• Laboratory vacuum lines
• Tube furnace vacuum systems
• Vacuum pump connections
• Gas and vacuum manifolds
• Research instrumentation
• Rigid KF line extensions
Technical Specifications
Product Type KF vacuum straight nipple
Material 304 stainless steel
Configuration Straight rigid connection
End Connections Two matching KF quick-flange interfaces
Available Sizes KF16 / KF25 / KF40 / KF50
Connection Principle
First KF End Connects to the corresponding KF system component
Intermediate Section Provides a rigid straight extension between components
Second KF End Matching KF interface for connection to the next component
Technical Notes
• Select the nipple according to the KF flange size of the connected components.
• A compatible KF centering ring, O-ring and quick clamp are required at each connection.
• Ensure that flange and sealing surfaces are clean before assembly.
• Vacuum performance depends on the complete installation and the condition of all sealing interfaces.
Supply
1 × KF Vacuum Straight Nipple
KF clamps, centering rings and O-rings not included
