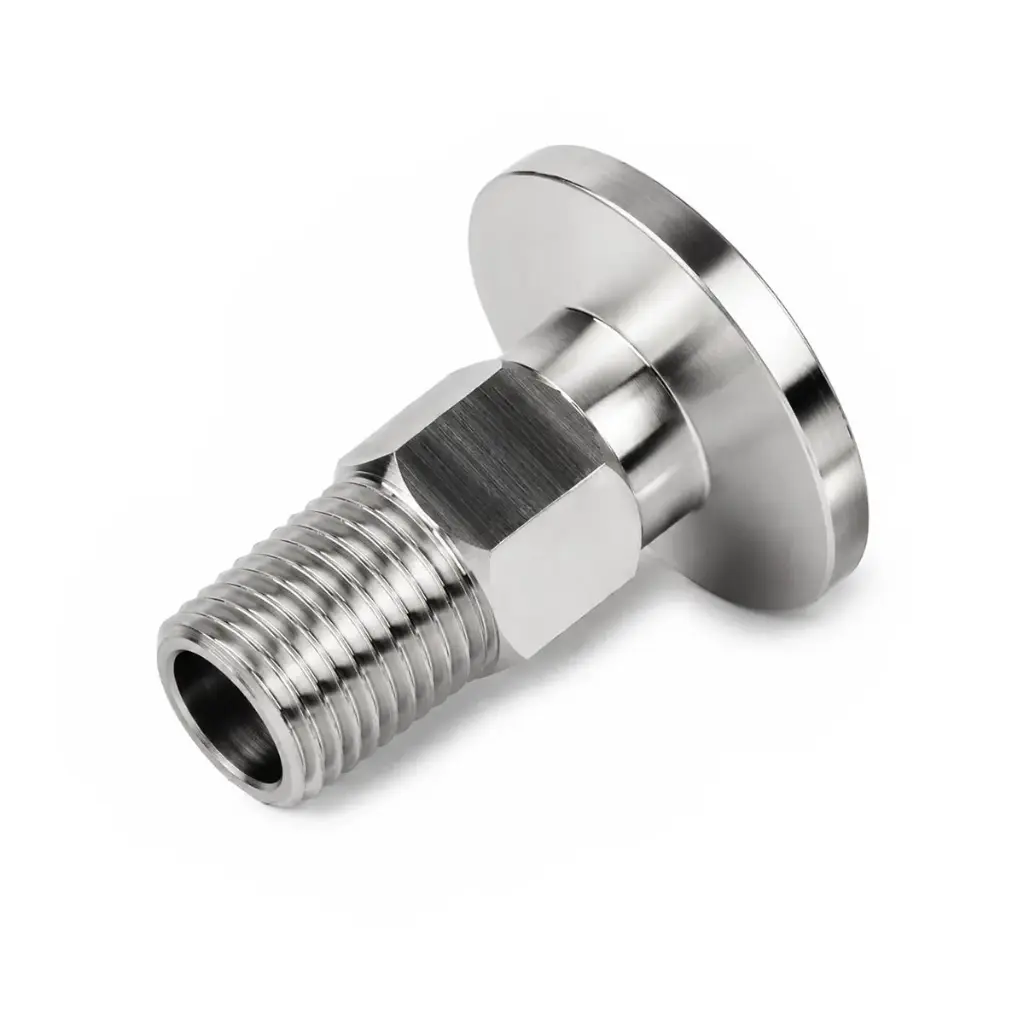

KF Vacuum Male Thread Adapter - PT Thread

KF Vacuum Male Thread Adapter - PT Thread

https://www.s4r.fr/shop/kf-vacuum-male-thread-adapter-pt-thread-299 https://www.s4r.fr/web/image/product.template/299/image_1920?unique=cff4d79

The S4R KF Vacuum Male Thread Adapter provides a compact transition between a standard KF vacuum flange and a compatible female threaded connection.

Manufactured from 304 stainless steel, the adapter combines a KF quick-flange interface with an integrated male PT pipe thread, allowing vacuum and gas-handling components to be connected to threaded laboratory equipment, valves, manifolds and furnace assemblies.

The S4R range is intentionally limited to four commonly useful configurations: KF16 × 1/4", KF25 × 1/4", KF40 × 1/2" and KF50 × 1/2". Additional KF and thread combinations are available on request.

0.00 € 0.0 EUR 0.00 €

Pricing available to approved customers

Add this product to a quote request, or sign in to view your pricing.

  • KF / Male Thread

This combination does not exist.

No account required. Add the products you need, then send your request to our technical sales team.

Request Pricing Access

The S4R KF Vacuum Male Thread Adapter provides a compact transition between a standard KF vacuum flange and a compatible female threaded connection. Manufactured from 304 stainless steel, the adapter combines a KF quick-flange interface with an integrated male PT pipe thread for integration with laboratory vacuum, gas-handling and furnace systems.

Key Features

✓ 304 stainless steel construction
✓ KF quick-flange interface
✓ Integrated male PT pipe thread
✓ Compact removable connection
✓ Four standardized S4R configurations
✓ Additional sizes available on request

Typical Applications

• Laboratory vacuum lines
• Tube furnace connections
• Vacuum pumps and manifolds
• Gas-handling assemblies
• Valves and threaded instrumentation
• Research and materials-processing systems
Technical Specifications
Product Type KF vacuum male thread adapter
Material 304 stainless steel
Vacuum-Side Connection KF quick flange
Threaded Connection Male PT pipe thread
Custom Configurations Available on request
Standard Configurations
KF16 PT 1/4" male
KF25 PT 1/4" male
KF40 PT 1/2" male
KF50 PT 1/2" male
Connection Principle
KF Side Connects using the corresponding KF centering ring and quick clamp
Thread Side Male PT thread connects to a compatible female threaded component
Technical Notes
• Select the adapter according to both the required KF flange size and male thread size.
• Confirm that the mating threaded component uses a compatible PT connection before assembly.
• A compatible KF centering ring, O-ring and quick clamp are required to complete the KF-side connection.
• Vacuum performance depends on the complete installation, threaded connection, sealing method and connected equipment.
Supply
1 × KF Vacuum Male Thread Adapter
KF clamp, centering ring and O-ring not included
Custom Configuration
Additional KF flange sizes and PT male thread dimensions can be supplied on request. Please provide the required KF size, thread size and quantity when requesting a non-standard configuration.
