KF Vacuum 90° Elbow

KF Vacuum 90° Elbow

https://www.s4r.fr/web/image/product.template/302/image_1920?unique=bd568fa

0.00 € 0.0 EUR 0.00 €

Pricing available to approved customers

Sign in to view your pricing, or request access to an S4R professional account.

  • KF Flange Size

This combination does not exist.

Request Pricing Access

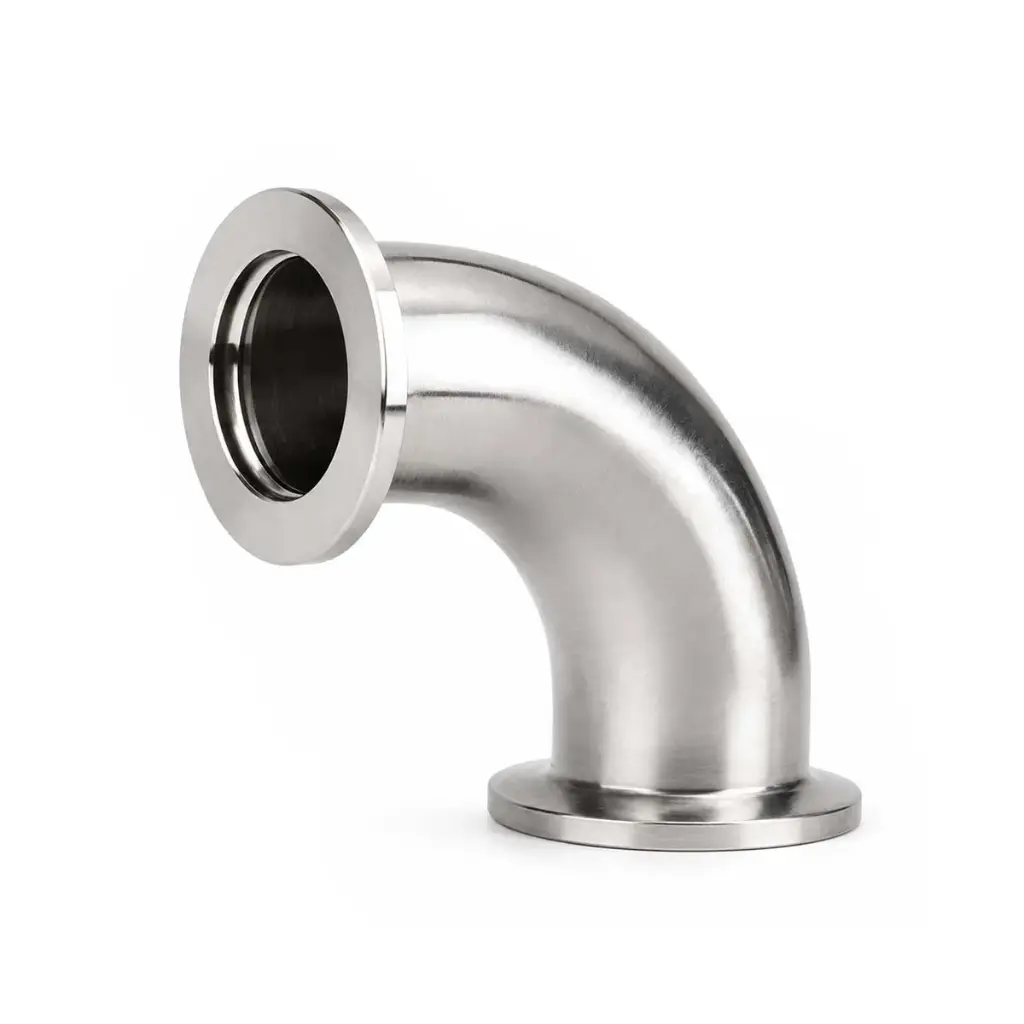

The S4R KF Vacuum 90° Elbow provides a compact right-angle connection between compatible KF vacuum components. Manufactured from 304 stainless steel, the elbow incorporates matching KF quick-flange interfaces at both ends and allows vacuum or gas lines to be routed through a 90° change in direction.

Key Features

✓ 304 stainless steel construction
✓ 90° vacuum-line routing
✓ Matching KF flange interfaces at both ends
✓ Compact removable connection
✓ KF16, KF25, KF40 and KF50 standard sizes
✓ Suitable for modular laboratory vacuum systems

Typical Applications

• Laboratory vacuum lines
• Tube furnace vacuum systems
• Vacuum pump connections
• Gas and vacuum manifolds
• Research instrumentation
• Compact vacuum-system routing
Technical Specifications
Product Type KF vacuum 90° elbow
Material 304 stainless steel
Elbow Angle 90°
End Connections Matching KF quick-flange interfaces
Available Sizes KF16 / KF25 / KF40 / KF50
Connection Principle
First KF End Connects using the corresponding KF centering assembly and quick clamp
Direction Change 90° elbow redirects the vacuum or gas line
Second KF End Matching KF connection for the next system component
Technical Notes
• Select the elbow according to the KF flange size of the connected components.
• A compatible KF centering ring, O-ring and quick clamp are required at each connection.
• Ensure that flange and sealing surfaces are clean before assembly.
• Vacuum performance depends on the complete installation and the condition of all sealing interfaces.
Supply
1 × KF Vacuum 90° Elbow
KF clamps, centering rings and O-rings not included
