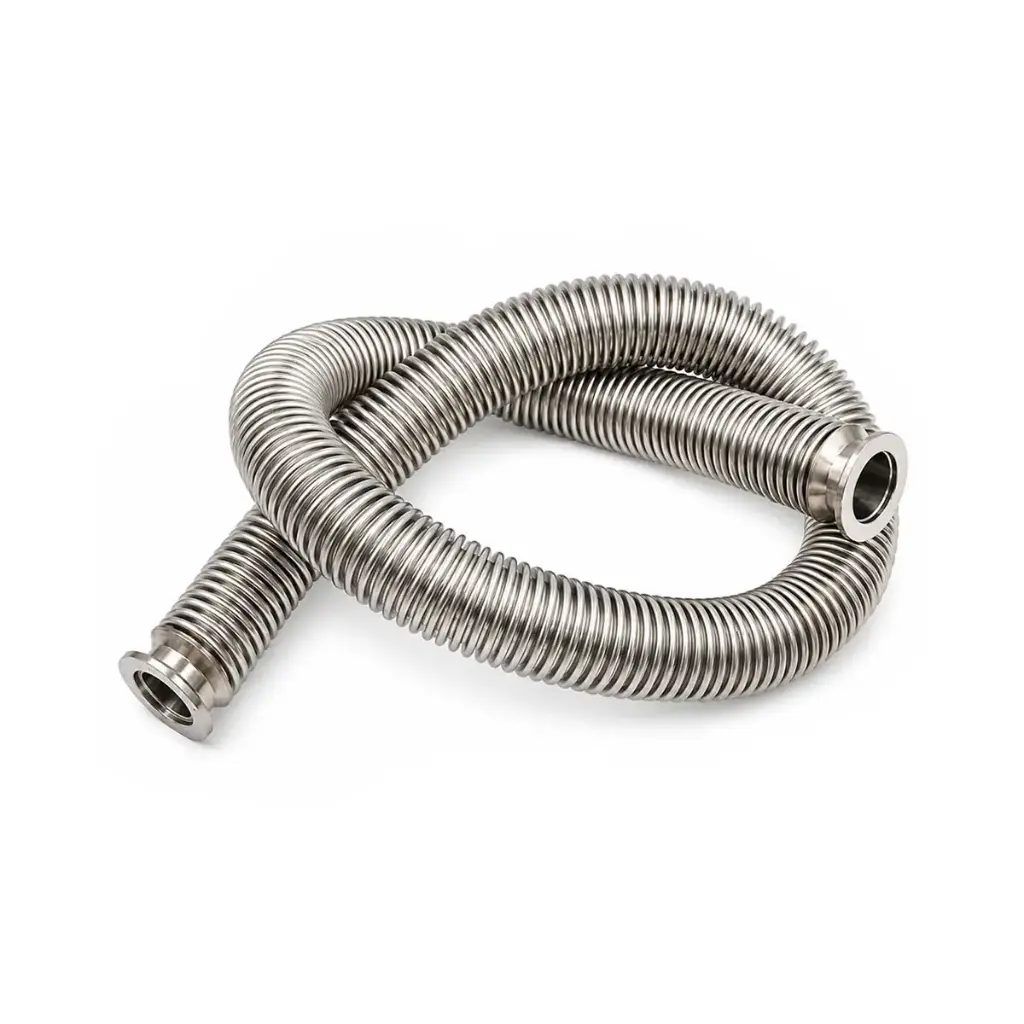

KF Flexible Stainless Steel Vacuum Hose

KF Flexible Stainless Steel Vacuum Hose

https://www.s4r.fr/web/image/product.template/301/image_1920?unique=dce1e4d

The S4R KF Flexible Stainless Steel Vacuum Hose provides a flexible connection between compatible KF vacuum components while accommodating installation constraints, routing requirements and limited relative movement within laboratory vacuum systems.

Manufactured from 304 stainless steel, the corrugated hose is fitted with matching KF flange interfaces at both ends. Standard S4R configurations are available in KF16, KF25, KF40 and KF50, with 500 mm and 1000 mm lengths.

The hose is particularly suited to vacuum pumps, tube furnace systems, manifolds and laboratory gas/vacuum assemblies where a rigid connection is impractical. Alternative lengths are available on request.

0.00 € 0.0 EUR 0.00 €

Pricing available to approved customers

Sign in to view your pricing, or request access to an S4R professional account.

  • KF Size / Length (mm)

This combination does not exist.

Request Pricing Access

The S4R KF Flexible Stainless Steel Vacuum Hose provides a flexible connection between compatible KF vacuum components while accommodating installation constraints, routing requirements and limited relative movement within laboratory vacuum systems. Manufactured from 304 stainless steel, the corrugated hose is fitted with matching KF flange interfaces at both ends and is available in standard lengths of 500 mm and 1000 mm.

Key Features

✓ 304 stainless steel construction
✓ Flexible corrugated vacuum hose design
✓ Matching KF flange interfaces at both ends
✓ Standard 500 mm and 1000 mm lengths
✓ KF16, KF25, KF40 and KF50 configurations
✓ Alternative lengths available on request

Typical Applications

• Laboratory vacuum lines
• Tube furnace vacuum connections
• Vacuum pump connections
• Gas and vacuum manifolds
• Research instrumentation
• Flexible connection between fixed vacuum components
Technical Specifications
Product Type KF flexible vacuum hose
Material 304 stainless steel
Hose Construction Corrugated flexible stainless steel
End Connections Matching KF flange interfaces
Standard Lengths 500 mm / 1000 mm
Available KF Sizes KF16 / KF25 / KF40 / KF50
Custom Lengths Available on request
Standard Configurations
KF16 500 mm / 1000 mm
KF25 500 mm / 1000 mm
KF40 500 mm / 1000 mm
KF50 500 mm / 1000 mm
Connection Principle
First KF End Connects using the corresponding KF centering assembly and quick clamp
Flexible Section Corrugated hose accommodates routing and limited relative movement
Second KF End Matching KF interface for the opposite vacuum component
Technical Notes
• Select the hose according to the required KF flange size and connection length.
• A compatible KF centering ring, O-ring and quick clamp are required at each connection.
• Avoid sharp bends, excessive twisting or localized mechanical loading of the corrugated section.
• Alternative hose lengths can be supplied for installations requiring a different connection distance.
• Vacuum performance depends on the complete installation and the condition of all sealing interfaces.
Supply
1 × KF Flexible Stainless Steel Vacuum Hose
KF clamps, centering rings and O-rings not included
Custom Lengths
Standard S4R configurations are supplied in 500 mm and 1000 mm lengths. Alternative lengths can be supplied on request. Please specify the required KF flange size, hose length and quantity when requesting a non-standard configuration.
