Gold Sputtering Target (Au)

Gold Sputtering Target (Au)

https://www.s4r.fr/shop/gold-sputtering-target-au-447 https://www.s4r.fr/web/image/product.template/447/image_1920?unique=2cf3af0
Gold sputtering target for metallic thin-film, electrode and sensor research. Select a requested size for a 99.99% Au specification, or discuss a custom target for your deposition system. Indicative pricing is subject to confirmation of purity, dimensions, mounting requirements and availability before your order is accepted. ​

0.00 € 0.0 EUR 0.00 €

Available by quotation only

Please request a quote for pricing and lead time. Our technical sales team will send you a complete offer including delivery.

  • Requested dimensions (Au target)

This combination does not exist.

Request a Quote
S4R · Thin Film & Deposition

Gold targets for thin-film research

Specify the target around your deposition system

Gold sputtering targets provide an Au source for the development of metallic thin films, electrodes and functional coatings in research laboratories.

Select a requested target size for a 99.99% Au specification. Indicative pricing is confirmed with the final purity, dimensions and mounting requirements in your quotation.

Material
Gold · Au
Requested grade
99.99% Au · 4N
Process
Sputter deposition
Supply
Confirmed on quotation

The requested grade and sizes are subject to confirmation before order acceptance.

Choose your requested dimensions

The selector records your requested diameter and thickness for a 99.99% Au target. The specification, tolerances and availability are confirmed before ordering.

Requested diameter Requested target thickness
Ø50.8 mm · 2 in1.5875 mm · 1/16 in
Ø50.8 mm · 2 in3.175 mm · 1/8 in
Ø76.2 mm · 3 in3.175 mm · 1/8 in

Dimensions refer to the gold target itself. 1 mm, 1.5875 mm, 3 mm and 3.175 mm are distinct specifications. Other sizes can be requested; check your cathode drawing before selection.

Application

Build the right specification for your experiment

Gold films are used in research involving electrical contacts, sensors and semiconductor structures. Film performance depends on the substrate, layer stack and deposition conditions, as well as the target material.

Electrical contacts

Define the required purity and impurity limits for your electrode or contact-layer process.

Functional thin films

Describe your substrate and layer stack so the material request reflects the intended experiment.

System compatibility

Provide the cathode model or target drawing, including thickness, clamping and cooling requirements.

Configuration

Check the complete target assembly

Match the diameter and thickness to the equipment specification. Thin foils used in microscopy coaters and thicker magnetron targets must be selected for their respective holders and operating conditions.

  • State the required gold purity and the basis on which it must be certified.
  • Specify dimensional tolerances and any machining details.
  • Tell us whether your cathode requires a backing plate or a bonded assembly.
  • Include quantity and any required batch documentation in your enquiry.
Mounting and operating conditionsBacking plates and bonding are included only when specified in the quotation. Power, cooling and conditioning settings must follow the equipment manufacturer's instructions for the confirmed assembly.

Technical specifications

ParameterSpecification
MaterialGold
Chemical symbolAu
CAS number7440-57-5
Product formCircular sputtering target
Requested diametersØ50.8 mm (2 in) or Ø76.2 mm (3 in)
Requested target thicknesses1.5875 mm (1/16 in) or 3.175 mm (1/8 in), as selected
Requested purity99.99% Au (4N); final supplied grade and certification basis confirmed on quotation
Dimensional tolerancesConfirmed against your requirements before ordering
Backing plate and bondingExcluded from the indicative target-only configuration; assembly requests reviewed separately
Sales unitOne gold target; assembly details as quoted
Price and lead timePrice shown is indicative; final price, availability and lead time confirmed on quotation

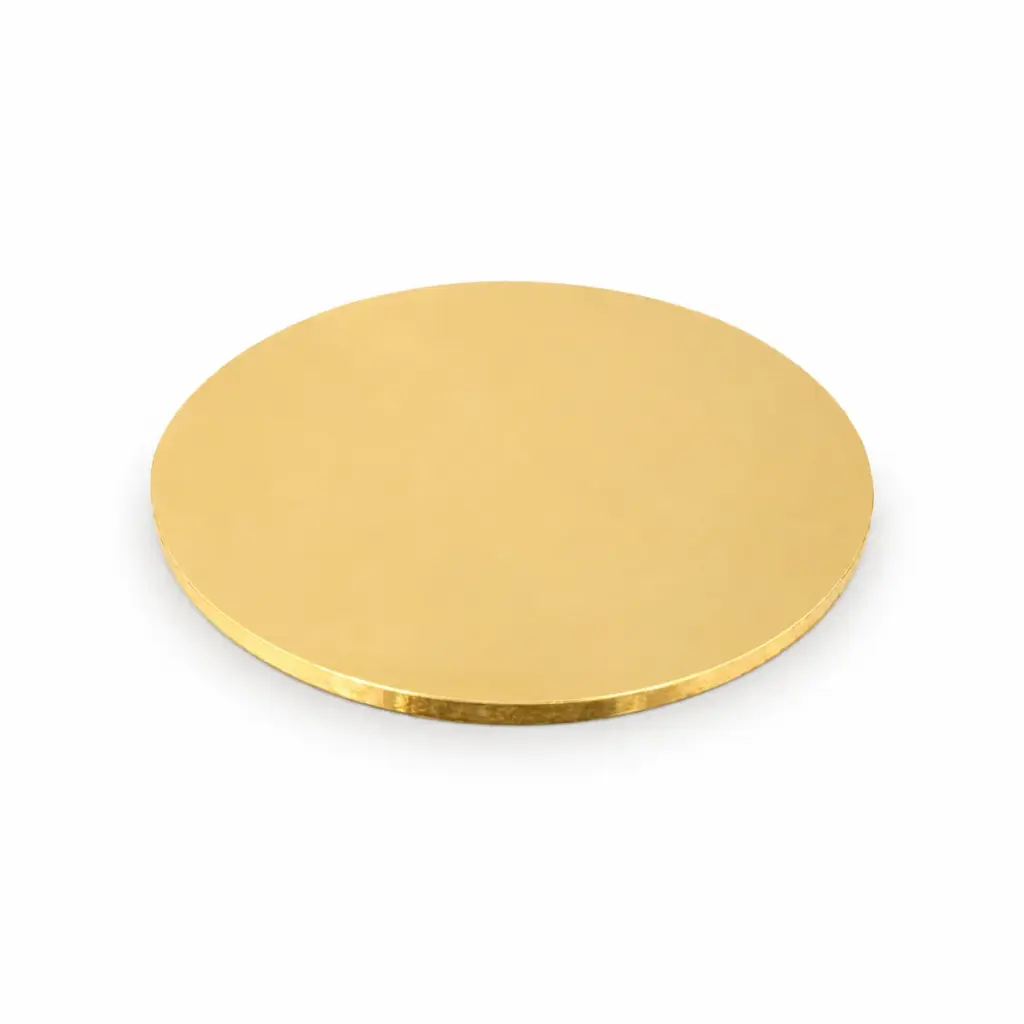

The image illustrates the product form. It does not define the delivered dimensions, purity or assembly.

Need another size or purity?

Send S4R your target drawing, required purity, cathode details and quantity. Custom dimensions and packaging can be reviewed for your application.

Discuss your target specification
