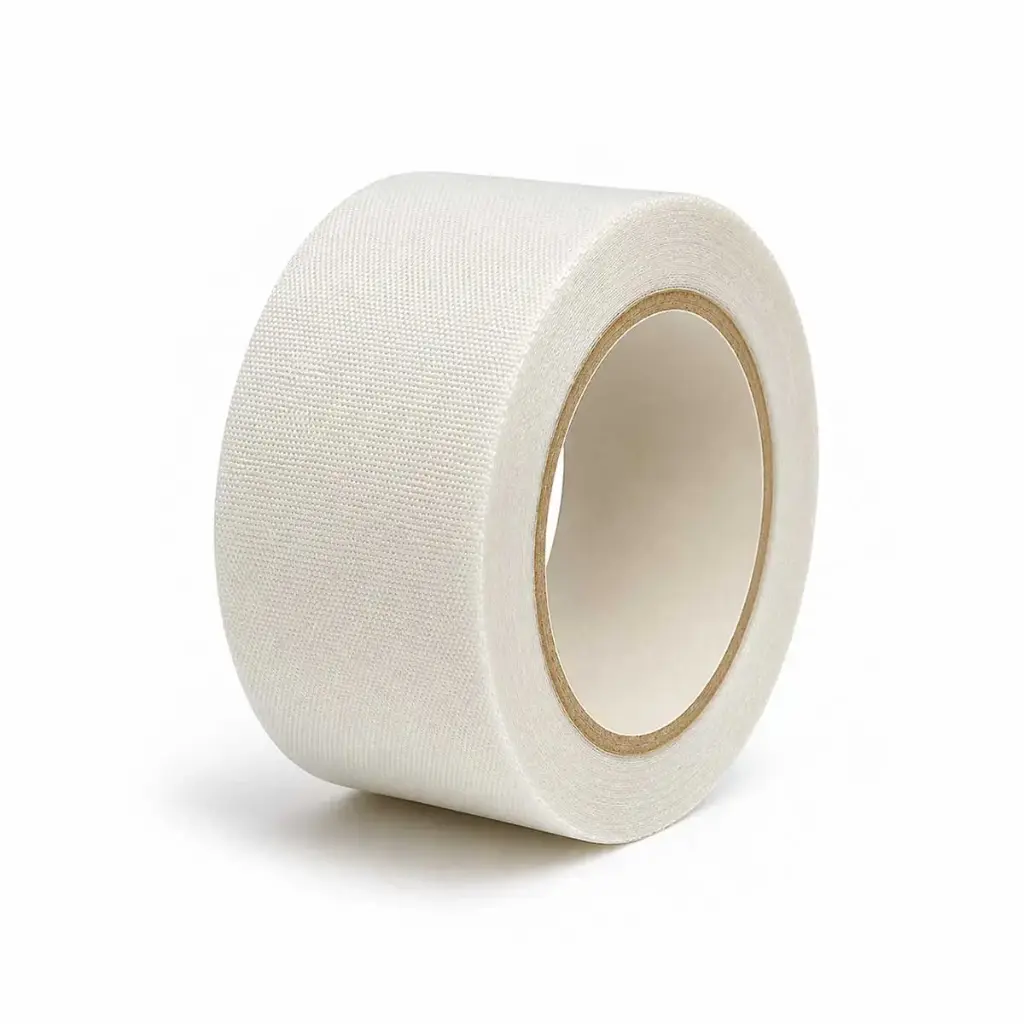

Glass Cloth High-Temperature Tape

White glass cloth adhesive tape with high-temperature silicone pressure-sensitive adhesive for electrical insulation, high-temperature masking, component protection and laboratory applications.

Pricing available to approved customers

Add this product to a quote request, or sign in to view your pricing.

Width (mm)

This combination does not exist.

Qty

No account required. Add the products you need, then send your request to our technical sales team.

Request Pricing Access

S4R Glass Cloth High-Temperature Tape combines a woven glass cloth backing with a thermosetting silicone pressure-sensitive adhesive for demanding insulation, masking and protection applications. Its mechanically strong glass-fibre construction and high-temperature resistance make it particularly suitable for laboratory equipment, electrical components and thermal-processing environments.

Key Features

✓ Woven glass cloth backing

✓ Thermosetting silicone pressure-sensitive adhesive

✓ 0.18 mm nominal thickness

✓ Continuous temperature resistance up to 200°C

✓ High mechanical strength

✓ Electrical insulation and flame-resistant construction

Typical Applications

• High-temperature electrical insulation

• Laboratory equipment wiring protection

• High-temperature masking

• Coil and electrical component insulation

• Furnace and thermal-processing equipment

• Component wrapping and mechanical protection

Technical Specifications

Product Type	Single-sided high-temperature adhesive tape
Backing Material	Woven glass cloth
Adhesive	Thermosetting silicone pressure-sensitive adhesive
Color	White
Nominal Thickness	0.18 mm
Roll Length	33 m
Available Widths	10 / 20 / 25 / 50 mm
Continuous Temperature Resistance	Up to 200°C
Electrical Insulation	Yes
Construction	High-strength glass cloth with silicone adhesive

Available Widths

Width	Thickness	Roll Length
10 mm	0.18 mm	33 m
20 mm	0.18 mm	33 m
25 mm	0.18 mm	33 m
50 mm	0.18 mm	33 m

Technical Notes

• The woven glass cloth backing provides enhanced mechanical strength and dimensional stability compared with conventional polymer film tapes.

• The silicone adhesive is designed for applications involving elevated temperatures and electrical insulation.

• Temperature performance depends on exposure duration, substrate and operating conditions.

Package Contents

1× Glass Cloth High-Temperature Tape Roll
Selected width × 33 m — 0.18 mm nominal thickness

Selection & Use

Select the tape width according to the required insulation, protection or masking area. Verify adhesion, temperature suitability and compatibility with the intended substrate and operating environment before routine use.
