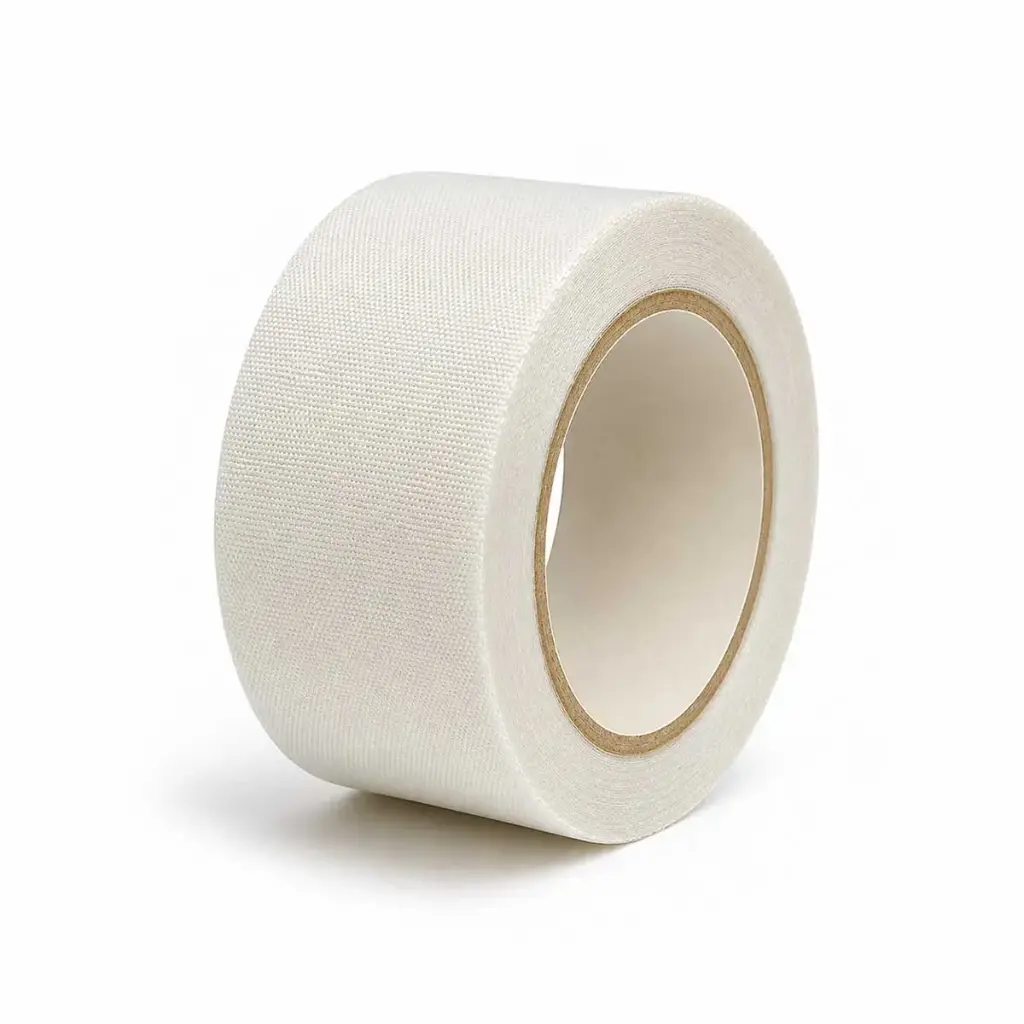

Glass Cloth High-Temperature Tape

Glass Cloth High-Temperature Tape

https://www.s4r.fr/web/image/product.template/269/image_1920?unique=fcfac4c
White glass cloth adhesive tape with high-temperature silicone pressure-sensitive adhesive for electrical insulation, high-temperature masking, component protection and laboratory applications.

0.00 € 0.0 EUR 0.00 €

Worldwide shipping

Shipping costs and lead time confirmed with your quotation.

Secure payment

Card payment and purchase orders accepted.

Technical support

Configuration and compatibility support from our engineers.

Pricing available to approved customers

Sign in to view your pricing, or request access to an S4R professional account.

  • Width (mm)

This combination does not exist.

Request Pricing Access

S4R Glass Cloth High-Temperature Tape combines a woven glass cloth backing with a thermosetting silicone pressure-sensitive adhesive for demanding insulation, masking and protection applications. Its mechanically strong glass-fibre construction and high-temperature resistance make it particularly suitable for laboratory equipment, electrical components and thermal-processing environments.

Key Features

✓ Woven glass cloth backing
✓ Thermosetting silicone pressure-sensitive adhesive
✓ 0.18 mm nominal thickness
✓ Continuous temperature resistance up to 200°C
✓ High mechanical strength
✓ Electrical insulation and flame-resistant construction

Typical Applications

• High-temperature electrical insulation
• Laboratory equipment wiring protection
• High-temperature masking
• Coil and electrical component insulation
• Furnace and thermal-processing equipment
• Component wrapping and mechanical protection
Technical Specifications
Product Type Single-sided high-temperature adhesive tape
Backing Material Woven glass cloth
Adhesive Thermosetting silicone pressure-sensitive adhesive
Color White
Nominal Thickness 0.18 mm
Roll Length 33 m
Available Widths 10 / 20 / 25 / 50 mm
Continuous Temperature Resistance Up to 200°C
Electrical Insulation Yes
Construction High-strength glass cloth with silicone adhesive
Available Widths
Width Thickness Roll Length
10 mm 0.18 mm 33 m
20 mm 0.18 mm 33 m
25 mm 0.18 mm 33 m
50 mm 0.18 mm 33 m
Technical Notes
• The woven glass cloth backing provides enhanced mechanical strength and dimensional stability compared with conventional polymer film tapes.
• The silicone adhesive is designed for applications involving elevated temperatures and electrical insulation.
• Temperature performance depends on exposure duration, substrate and operating conditions.
Package Contents
1× Glass Cloth High-Temperature Tape Roll
Selected width × 33 m — 0.18 mm nominal thickness
Selection & Use
Select the tape width according to the required insulation, protection or masking area. Verify adhesion, temperature suitability and compatibility with the intended substrate and operating environment before routine use.
