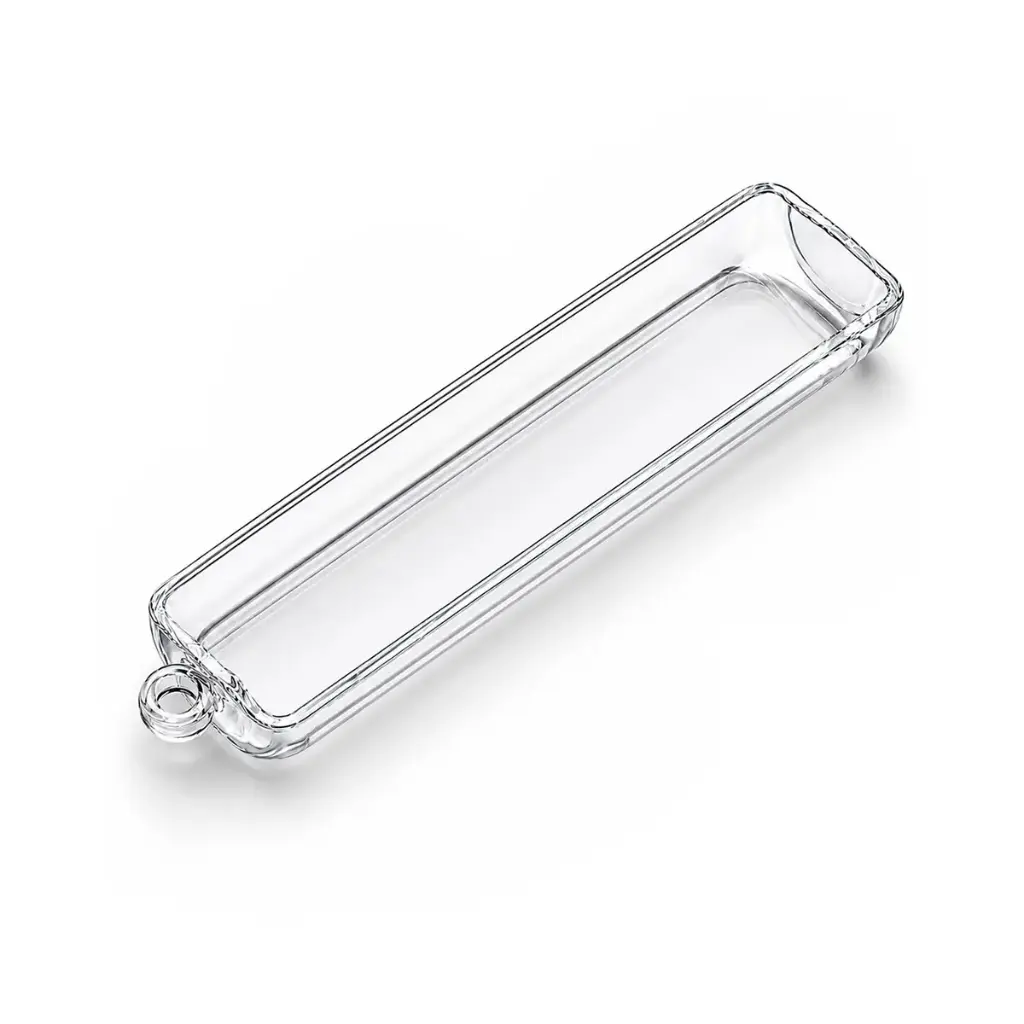

Fused Quartz Boat — Open Type

High-purity quartz boat designed for holding powders, pellets, substrates and other solid samples during heat treatment in laboratory tube furnaces.

Its open, low-profile geometry provides a stable sample area while keeping the overall cross-section suitable for insertion into process tubes. An integrated end loop facilitates positioning and retrieval during furnace loading. The range covers compact analytical formats through larger sample holders, with a reference maximum temperature of 1200°C and custom dimensions available on request.

Pricing available to approved customers

Add this product to a quote request, or sign in to view your pricing.

Dimensions (L × W × H, mm)

This combination does not exist.

Qty

No account required. Add the products you need, then send your request to our technical sales team.

Request Pricing Access

The standard range is organized around the clearance and sample-space requirements of laboratory tube furnaces. Narrow formats are suited to compact process tubes and small powder loads, while wider boats provide additional working area for larger samples and furnace tubes. Select the dimensions according to the process-tube internal diameter, heated-zone length and required sample footprint.

Key Features

✓ High-purity quartz construction

✓ Open boat geometry for sample loading

✓ Integrated end loop for handling

✓ Reference maximum temperature of 1200°C

✓ 27 standard laboratory dimensions

✓ Custom dimensions available on request

Typical Applications

• Powder calcination and heat treatment

• Annealing and sintering processes

• Battery and electrode material processing

• Thermal synthesis of research materials

• Pellet and solid-sample treatment

• Substrate and sample support in tube furnaces

Technical Specifications

Material	High-purity quartz
Product Type	Open quartz boat
Handling Feature	Integrated end loop
Reference Maximum Temperature	1200°C
Standard Length Range	50–200 mm
Standard Width Range	10–60 mm
Standard Height Range	5–30 mm

Standard Sizes

Length	Width	Height
50 mm	10 mm	5 mm
50 mm	15 mm	7.5 mm
50 mm	20 mm	10 mm
50 mm	25 mm	12.5 mm
50 mm	30 mm	15 mm
50 mm	40 mm	20 mm
50 mm	50 mm	25 mm
70 mm	15 mm	7.5 mm
100 mm	10 mm	5 mm
100 mm	15 mm	7.5 mm
100 mm	20 mm	10 mm
100 mm	25 mm	12.5 mm
100 mm	30 mm	15 mm
100 mm	40 mm	20 mm
100 mm	50 mm	25 mm
100 mm	60 mm	30 mm
120 mm	40 mm	20 mm
150 mm	25 mm	12.5 mm
150 mm	30 mm	15 mm
150 mm	40 mm	20 mm
150 mm	50 mm	25 mm
150 mm	60 mm	30 mm
200 mm	25 mm	12.5 mm
200 mm	30 mm	15 mm
200 mm	40 mm	20 mm
200 mm	50 mm	25 mm
200 mm	60 mm	30 mm

Technical Notes

• Allow sufficient clearance between the boat and the inner wall of the process tube for safe insertion and removal.

• Avoid rapid heating or cooling and localized mechanical impact to reduce the risk of quartz fracture.

• Distribute powders and solid samples evenly and avoid concentrated loads on the boat walls.

• Do not expose quartz components to hydrofluoric acid or fluoride-containing media.

Package Contents

1× High-Purity Quartz Boat
Open type with handling loop — selected L × W × H

Selection & Use

Select the boat width and height according to the process-tube internal diameter, leaving sufficient clearance for loading and removal. Length should be selected according to the available heated zone and required sample area. For non-standard furnace configurations, alternative quartz boat dimensions can be supplied on request.
