- Formed Aluminum Laminated Pouch Cell Cases – 113 µm

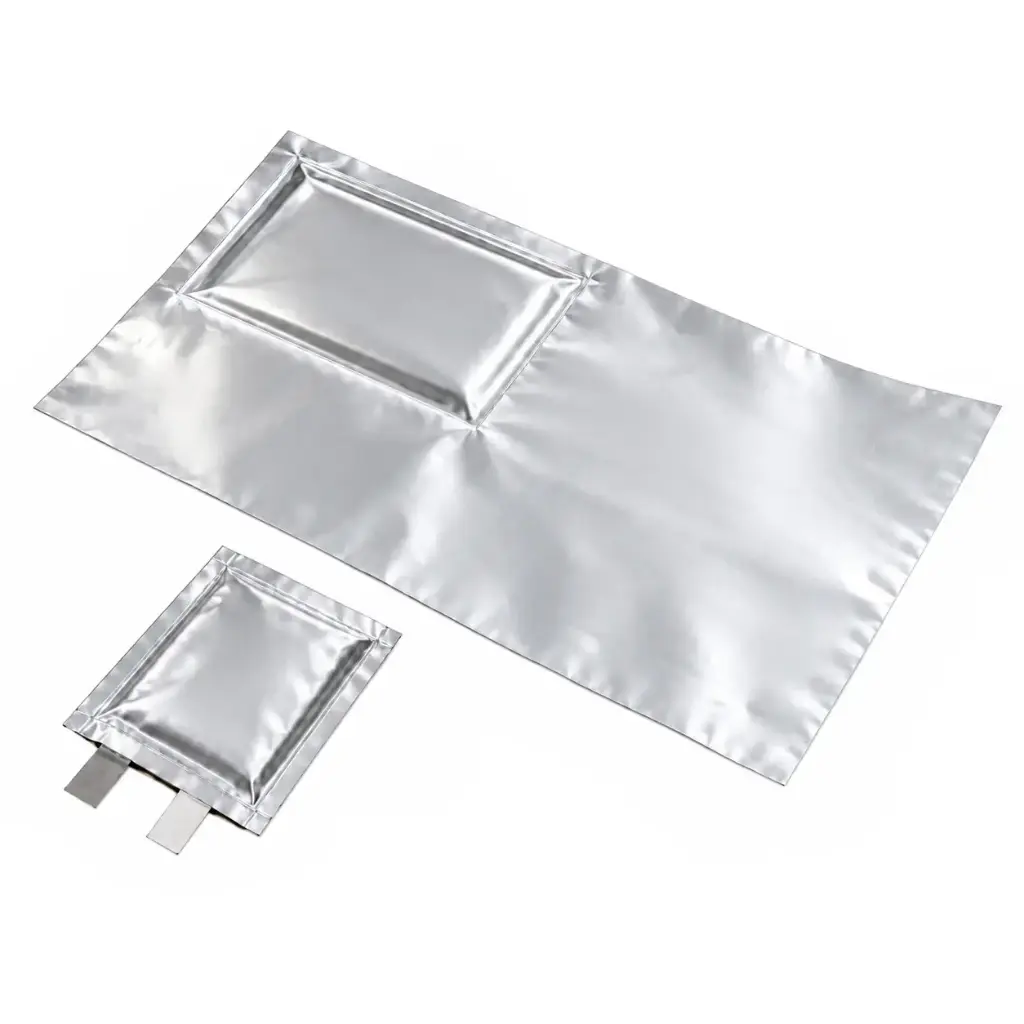

Formed Aluminum Laminated Pouch Cell Cases – 113 µm
https://www.s4r.fr/shop/formed-aluminum-laminated-pouch-cell-cases-113-mm-335 https://www.s4r.fr/web/image/product.template/335/image_1920?unique=f2b5119No account required. Add the products you need, then send your request to our technical sales team.
Request Pricing AccessAlready have an approved account? Sign in
Formed aluminum laminated cases for laboratory pouch-cell fabrication
Pre-formed pouch-cell cases manufactured from 113 µm PA / aluminum / PP laminated film. Two laboratory formats and multiple cavity depths provide ready-to-use case geometries for pouch-cell research, prototyping and small-batch assembly.
Ready-formed cases for pouch-cell prototyping
The cavity is formed before delivery, reducing pouch preparation steps and providing repeatable geometries for laboratory battery assembly.
Pre-formed cavity
Supplied with the pouch cavity already formed for direct use in laboratory cell preparation.
113 µm laminate
PA / aluminum / PP multilayer construction combining mechanical protection, barrier performance and an inner sealing surface.
Multiple depths
Formed depths from 1 to 6 mm depending on the selected pouch-cell format.
Laboratory pack
Each configuration is supplied in packs of 50 formed cases for research, development and prototype-scale assembly.
Two geometries for laboratory pouch cells
Select the case geometry and nominal formed depth according to the required pouch-cell architecture.
PA / aluminum / PP multilayer construction
The 113 µm laminate combines an outer polyamide layer for mechanical protection, an aluminum barrier layer and an inner polypropylene surface for pouch-cell heat sealing.
The same laminate architecture is used across the formed S4R pouch-cell case range for consistency with laboratory pouch-cell fabrication workflows.
| Thickness | PA | Bonding layer | Aluminum | PP | Total |
|---|---|---|---|---|---|
| 113 µm | 25 µm | 3 µm | 40 µm | 45 µm | 113 µm |
113 µm material performance
Reference technical test indices for the aluminum laminated material used to manufacture the formed pouch-cell cases.
| PA / Al Peel | Al / PP Peel | Heat-Seal Strength | Electrolyte Resistance |
|---|---|---|---|
| ≥3.0 N/15 mm | ≥12.0 N/15 mm | ≥60 N/15 mm | ≥7.0 N/15 mm |
Values are reference technical test indices for the base laminate. The nominal finished case depth is defined by the selected formed geometry and should not be interpreted as the standardized forming test depth of the flat laminate.
For laboratory pouch-cell assembly
Ready-formed flexible packaging components for experimental pouch-cell development and small-batch battery prototyping.
Format selection, sealing and handling
