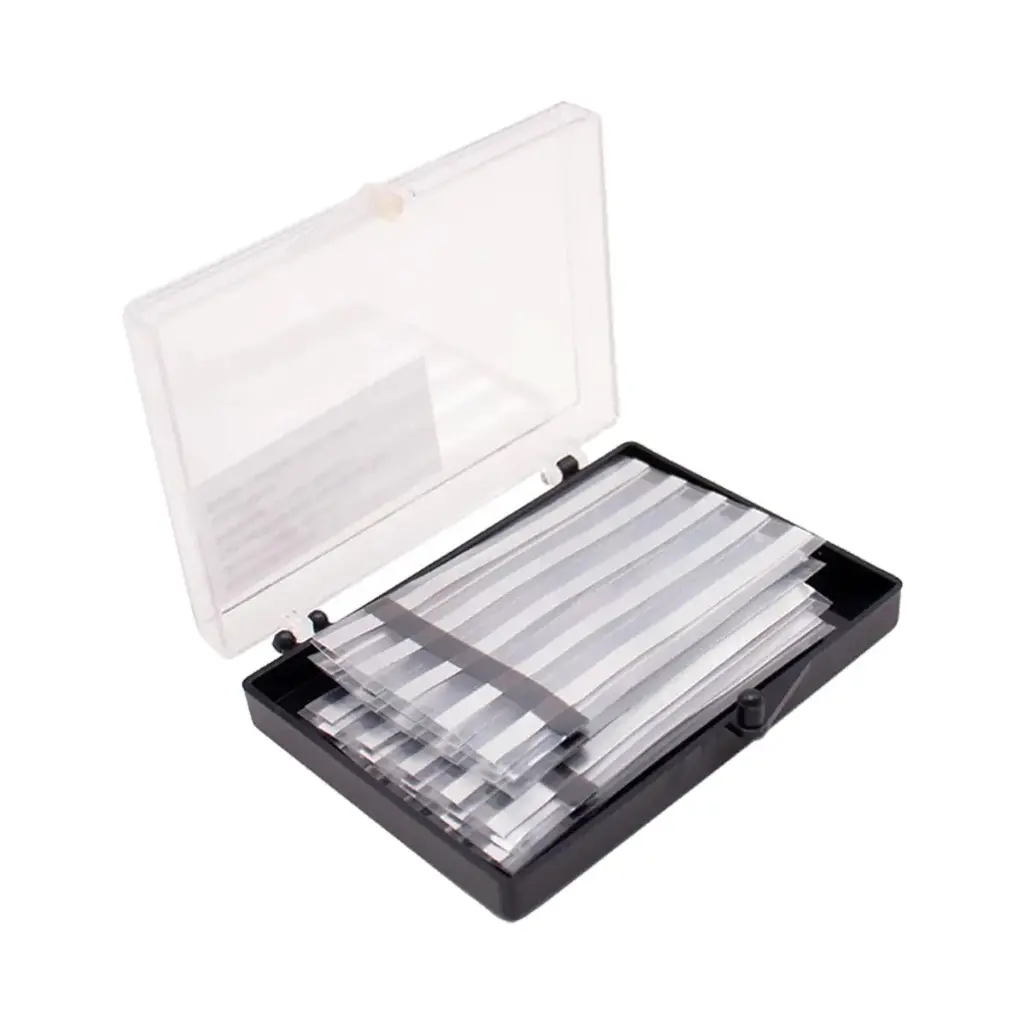

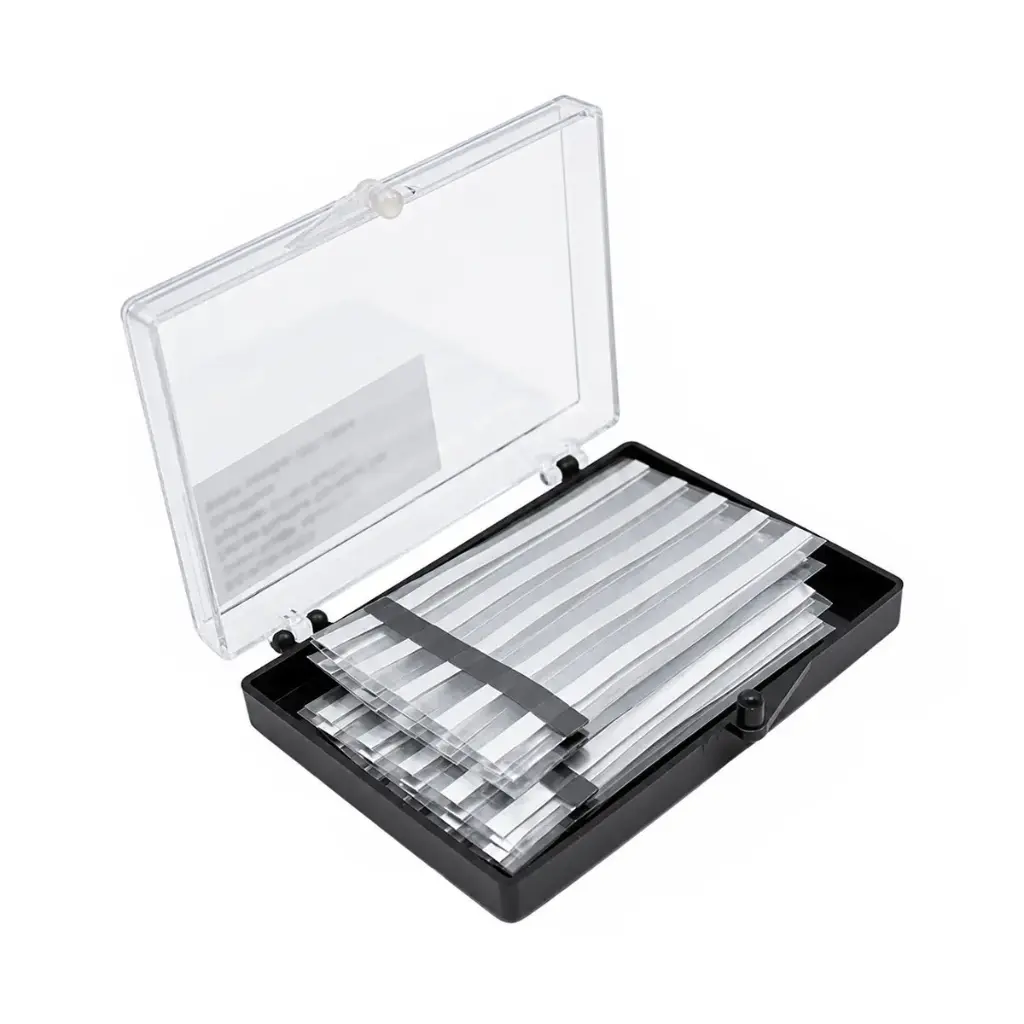

Aluminum Tab with Adhesive Polymer for Pouch Cell Positive Terminal – 3 / 4 / 8 / 15 mm Width

Aluminum Tab with Adhesive Polymer for Pouch Cell Positive Terminal – 3 / 4 / 8 / 15 mm Width

https://www.s4r.fr/shop/aluminum-tab-with-adhesive-polymer-for-pouch-cell-positive-terminal-3-4-8-15-mm-width-113 https://www.s4r.fr/web/image/product.template/113/image_1920?unique=cff4d79

High-purity aluminum tabs with adhesive polymer layer for pouch cell positive terminal connection.

Available in multiple widths for laboratory and pilot-scale battery assembly.

0.00 € 0.0 EUR 0.00 €

Pricing available to approved customers

Add this product to a quote request, or sign in to view your pricing.

  • Width (mm)

This combination does not exist.

No account required. Add the products you need, then send your request to our technical sales team.

Request Pricing Access
Pouch Cell Components · Positive Terminal Tab

Aluminum tab with adhesive polymer for pouch-cell positive terminal

High-purity aluminum tabs with an adhesive polymer film for pouch-cell positive terminal connection. Available in four widths for laboratory and pilot-scale battery assembly.

≥99.9 %
Aluminum purity
3 → 15 mm
Tab width range
0.09 → 0.35 mm
Aluminum thickness
3 A · 10 A
Specified current values
Key features

Aluminum positive-terminal tabs for pouch-cell assembly

High-purity aluminum tabs with an adhesive polymer film for pouch-cell cathode current-collector connection.

High-purity aluminum

Aluminum material with a specified purity of ≥99.9 %.

Adhesive polymer film

Positive-terminal tab supplied with an adhesive polymer film.

Four width variants

Available in 3, 4, 8 and 15 mm tab widths with variant-specific length and aluminum thickness.

Cathode connection

Intended for pouch-cell cathode current-collector connection.

Available variants

Four aluminum tab dimensions

Each width is supplied with its specified length, aluminum thickness, current indication and packaging.

3 mm
60 mm length
0.10 mm Al
3 A
40 pcs / box
4 mm
61 mm length
0.09 mm Al
3 A
50 pcs / box
8 mm
61 mm length
0.09 mm Al
10 A
50 pcs / box
15 mm
44 mm length
0.35 mm Al
Higher load
50 pcs / box
Product data

Technical specifications

Material, application and dimensional data for the S4R aluminum tab variants.

Width Length Thickness (Al) Current indication Packaging
3 mm 60 mm 0.10 mm 3 A 40 pcs / box
4 mm 61 mm 0.09 mm 3 A 50 pcs / box
8 mm 61 mm 0.09 mm 10 A 50 pcs / box
15 mm 44 mm 0.35 mm Higher load 50 pcs / box
Applications

Pouch-cell positive terminal connection

Aluminum tabs with an adhesive polymer film for pouch-cell cathode current-collector connection and battery assembly.

Positive terminal
Designed as a positive-terminal tab for pouch cells.
Cathode connection
Intended for pouch-cell cathode current-collector connection.
Laboratory & pilot-scale assembly
Four dimensions for laboratory and pilot-scale battery assembly.
Important information

Terminal use and variant data

Positive-terminal use These aluminum tabs are specified for pouch-cell positive-terminal connection to the cathode current collector.
Current values The 3 mm and 4 mm variants are specified at 3 A. The 8 mm variant is specified at 10 A.
15 mm variant The 15 mm × 44 mm × 0.35 mm variant is specified as “Higher load”. No numerical current value is specified for this variant.
Variant-specific dimensions Dimensions are specific to each width. The 8 mm aluminum tab variant has a specified length of 61 mm.
