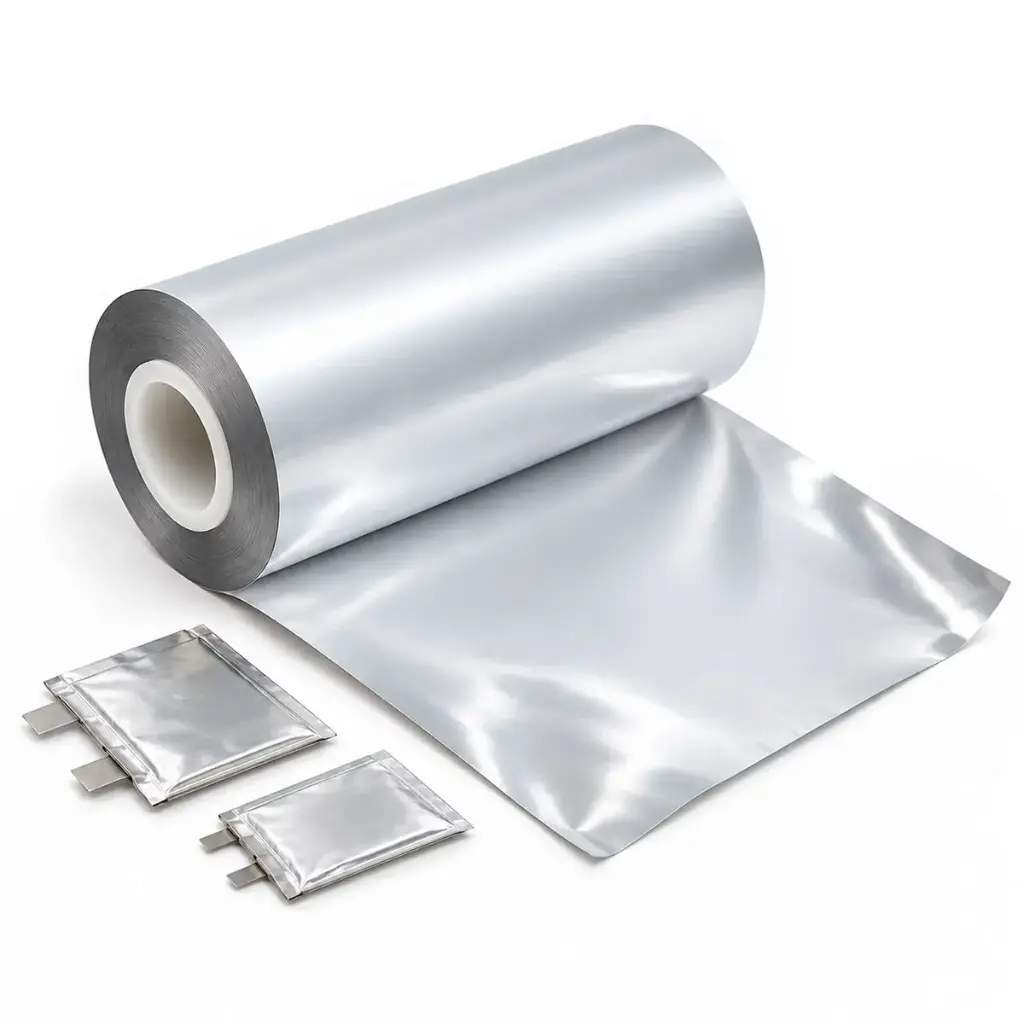

Aluminum laminated film for pouch-cell fabrication
Multilayer aluminum-plastic film designed for forming and heat-sealing pouch-cell cases used in battery research and prototyping. Its PA / bonding layer / aluminum / PP architecture combines mechanical protection, barrier performance and an inner heat-sealable surface.
Three selected film grades for laboratory pouch-cell fabrication
The S4R range covers thin, standard and reinforced laminate configurations while maintaining the same functional pouch-film architecture.
Three thicknesses
88, 113 and 153 µm grades cover different requirements for flexibility, laminate strength and pouch construction.
Multilayer barrier structure
Functional PA, bonding, aluminum and PP layers combine external protection, metallic barrier performance and an internal sealing surface.
Formable laminate
Tested forming-depth indices range from 4.0 to 4.5 mm without fracture or delamination under the stated test conditions.
Laboratory roll formats
Selected roll widths and lengths provide practical formats for pouch-cell research, development and prototyping.
PA / aluminum / PP multilayer construction
Aluminum laminated pouch film combines several functional layers into a single flexible material. The outer polyamide surface provides mechanical protection, the aluminum foil acts as the principal metallic barrier and the polypropylene layer forms the internal heat-sealing surface facing the cell volume.
The layers are permanently bonded into a flexible laminate designed to maintain structural integrity during pouch forming and sealing.
| Thickness | PA | Bonding Layer | Aluminum | PP | Total |
|---|---|---|---|---|---|
| 88 µm | 15 µm | 3 µm | 35 µm | 35 µm | 88 µm |
| 113 µm | 25 µm | 3 µm | 40 µm | 45 µm | 113 µm |
Specifications by film grade
The three grades provide different laminate, sealing and electrolyte-resistance characteristics according to film thickness.
| Thickness | PA / Al Peel | Al / PP Peel | Heat-Seal Strength | Forming Depth | Electrolyte Resistance |
|---|---|---|---|---|---|
| 88 µm | ≥3.0 N/15 mm | ≥9.0 N/15 mm | ≥60 N/15 mm | 4.0 mm | ≥7.0 N/15 mm |
| 113 µm | ≥3.0 N/15 mm | ≥12.0 N/15 mm | ≥60 N/15 mm | 4.5 mm | ≥7.0 N/15 mm |
| 153 µm | ≥4.0 N/15 mm | ≥16.0 N/15 mm | ≥90 N/15 mm | 4.5 mm | ≥12.0 N/15 mm |
All grades: no fracture or delamination under the stated forming test conditions. Peel, sealing and electrolyte-resistance values are technical test indices for the corresponding film grades.
Laboratory roll formats
Selected roll dimensions for the three S4R aluminum laminated pouch-film grades.
| Thickness | Available Formats |
|---|---|
| 88 µm | 200 mm × 5 m · 200 mm × 10 m · 200 mm × 20 m |
| 113 µm | 200 / 240 / 400 mm × 5 / 10 / 20 m |
| 153 µm | 200 / 240 / 400 mm × 5 / 10 / 20 m |
For pouch-cell research and prototyping
Flexible packaging material for laboratory pouch-cell preparation across rechargeable battery research and development applications.
