KF Vacuum 90° Elbow

KF Vacuum 90° Elbow

https://www.s4r.fr/shop/kf-vacuum-90deg-elbow-302 https://www.s4r.fr/web/image/product.template/302/image_1920?unique=cff4d79

0.00 € 0.0 EUR 0.00 €

Pricing available to approved customers

Add this product to a quote request, or sign in to view your pricing.

  • KF Flange Size

This combination does not exist.

No account required. Add the products you need, then send your request to our technical sales team.

Request Pricing Access

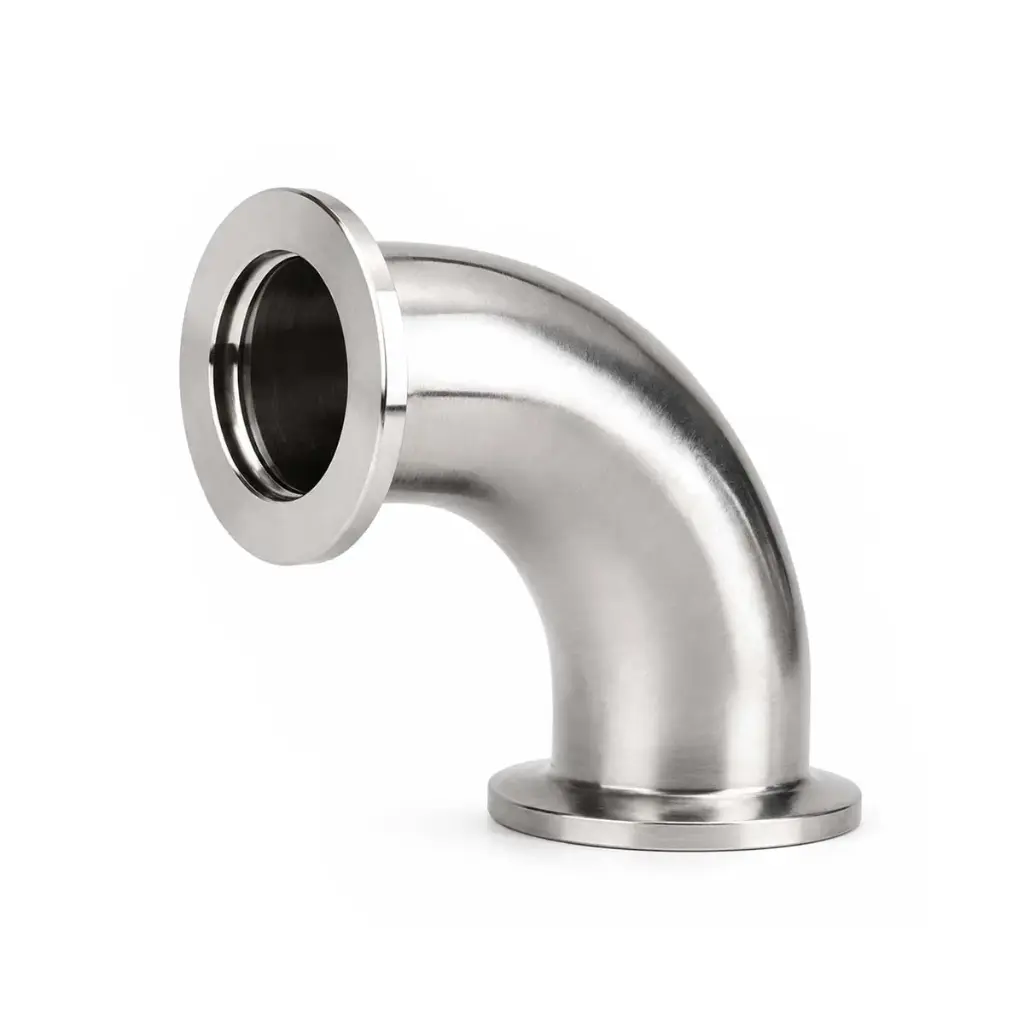

The S4R KF Vacuum 90° Elbow provides a compact right-angle connection between compatible KF vacuum components. Manufactured from 304 stainless steel, the elbow incorporates matching KF quick-flange interfaces at both ends and allows vacuum or gas lines to be routed through a 90° change in direction.

Key Features

✓ 304 stainless steel construction
✓ 90° vacuum-line routing
✓ Matching KF flange interfaces at both ends
✓ Compact removable connection
✓ KF16, KF25, KF40 and KF50 standard sizes
✓ Suitable for modular laboratory vacuum systems

Typical Applications

• Laboratory vacuum lines
• Tube furnace vacuum systems
• Vacuum pump connections
• Gas and vacuum manifolds
• Research instrumentation
• Compact vacuum-system routing
Technical Specifications
Product Type KF vacuum 90° elbow
Material 304 stainless steel
Elbow Angle 90°
End Connections Matching KF quick-flange interfaces
Available Sizes KF16 / KF25 / KF40 / KF50
Connection Principle
First KF End Connects using the corresponding KF centering assembly and quick clamp
Direction Change 90° elbow redirects the vacuum or gas line
Second KF End Matching KF connection for the next system component
Technical Notes
• Select the elbow according to the KF flange size of the connected components.
• A compatible KF centering ring, O-ring and quick clamp are required at each connection.
• Ensure that flange and sealing surfaces are clean before assembly.
• Vacuum performance depends on the complete installation and the condition of all sealing interfaces.
Supply
1 × KF Vacuum 90° Elbow
KF clamps, centering rings and O-rings not included
