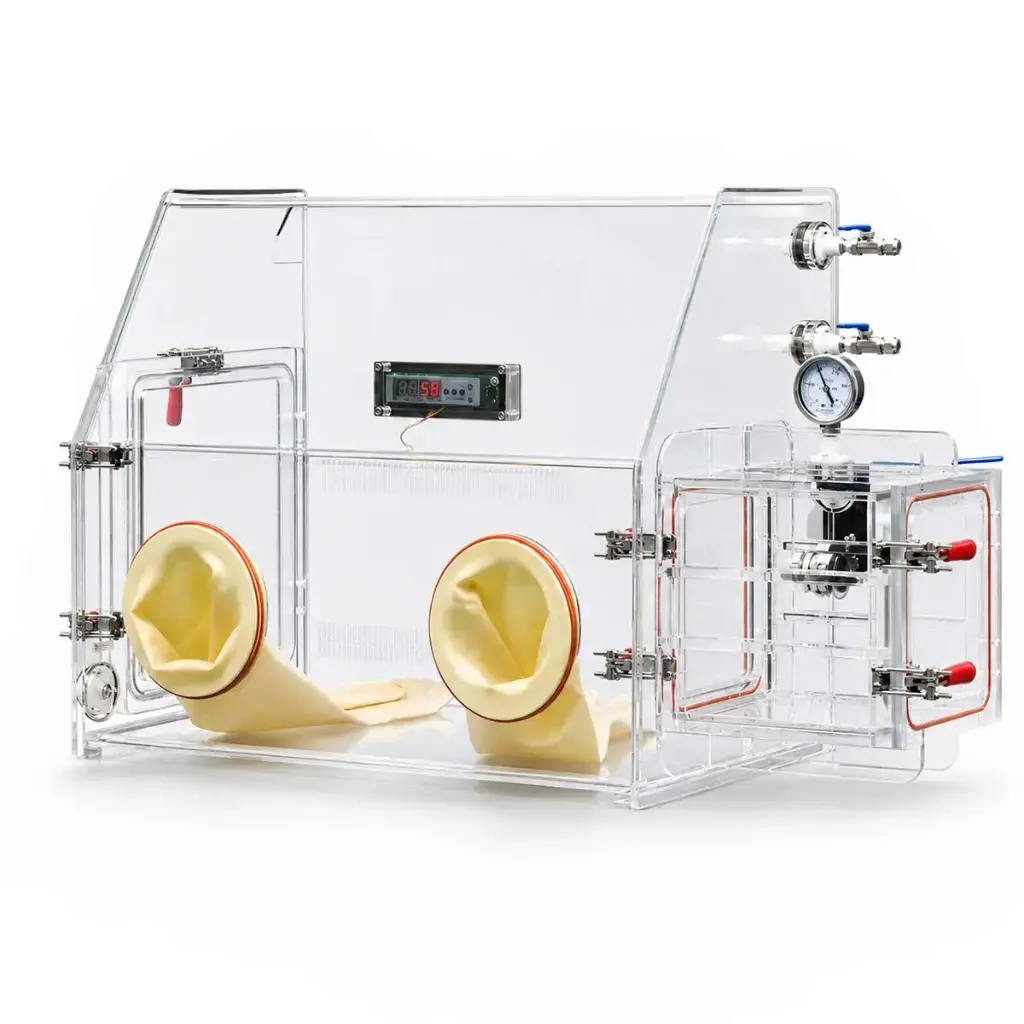

The S4R Acrylic Inert Atmosphere Glove Box provides a transparent, enclosed workspace for handling materials under a controlled inert-gas environment. Designed for laboratory workflows where reduced oxygen and moisture exposure is required without the complexity of a continuous purification system, the main chamber is conditioned by direct displacement of the internal atmosphere with nitrogen or argon.

A dedicated vacuum antechamber allows samples, tools and small laboratory components to be introduced or removed while limiting disturbance of the atmosphere inside the main working chamber. The main chamber itself is not evacuated and operates close to atmospheric pressure.

The clear acrylic enclosure provides excellent visibility of the working area and incorporates two glove ports, a side access door, internal electrical access and dedicated gas inlet and outlet connections. The system can therefore accommodate common laboratory instruments while maintaining an enclosed working environment.

Two configurations are available. The compact 700 × 450 × 550 mm model is suited to routine sample handling and small experimental setups, while the larger 900 × 600 × 700 mm model provides substantially more working space and uses a thicker 10 mm acrylic construction.

Typical applications include battery and electrochemical materials preparation, air-sensitive powders, solid electrolytes, electronic materials, inert-atmosphere assembly and general materials research.

Atmosphere quality depends on the purity and flow of the supplied inert gas, purge duration, chamber leakage and outgassing from materials placed inside. The standard configuration is therefore a purge-based inert-atmosphere glove box and not a recirculating purification glove box.
